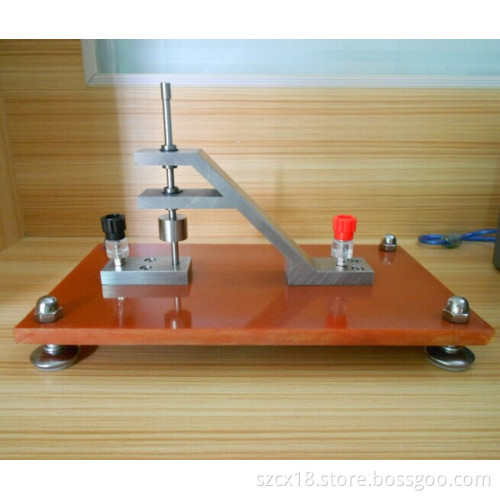

IEC60065 figure 6 dielectric strength tester
- Min. Order:
- 1
- Min. Order:
- 1
Your message must be between 20 to 2000 characters
Contact NowIEC60065 figure 6 dielectric strength tester
Application:
It's mainly used for testing thin-layer insulation material electric strength.
Stand part of the test device using the whole structure, made of 304 plate material processing.
Features:
To improve the insulation board and creepage dielectric properties, surface brushed polished, bottom bracket the minimum distance from the edge of >35mm, the altitude of 2000 meters designed to meet the strength test requirements of 12KV
Technical Parameter:
|
Main Parameter |
Technical Index |
|
Metal Pole Diameter |
5±0.1mm |
|
Metal Club Weight |
100±2g |
|
Max. Measure Range |
20mm |
|
Max. Strength |
<12KV (altitude below 2000m) |
|
Creepage Distances |
>35mm |
|
Standard |
IEC60065, GB8898,UL1310 |
