IEC60695 Electrical Safety Needle Flame Test Chamber

IEC60695 Electrical Safety Needle Flame Test Chamber

Application
Insulation and combustible materials used inside electrical and electronic products may propagate flames when a failed component ignites, which may develop into a fire that endangers the safety of operators and product operation. The Needle Flame Tester is used to assess the fire hazard of such component materials. The test is performed to determine that the test flame does not cause ignition of parts, or that a combustible part ignited by the test flame has a limited duration of burning or a limited extent of burning, without spreading fire by flames or burning or glowing particles falling from the test specimen.

Instrument

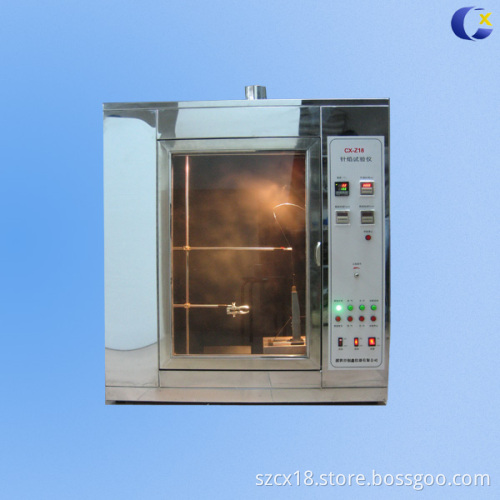

The Needle Flame Tester is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. The Needle Flame Tester consists of a 0.9mm needle burner that tilts to 45♦ from the vertical and is fueled with butane gas. The test time for the temperature of the standard copper block to increase from 100♦C ♦5♦C to 700♦C ♦3♦C shall be 23.5s ♦1.0s. Test flame height is adjusted 12mm ♦1mm.The fire hazard of the specimen is assessed by measuring the burning duration of the specimen, and any ignition of the wrapping tissue and white pine board below the specimen. The instrument is designed to conform to IEC60695-11-5, IEC60695-2-2 and other most commonly used standards in the market.

Features
•Self contained cabinet with large viewing window gives a draft-free test
•Dark interior cabinet color for better test viewing
•Easy access to testing area during setup
•Safety interlock on door halts test if the door is opened
•Internal cabinet light can be turned on during test setup and shut off to give better viewing during the test
•Convenient built-in flame measurement scale
•Built in exhaust fan and control
•Control panel has all controls in easy reach including lighting and exhaust
•Automatic electronic flame ignition with type K thermocouple and temperature control to automatically measure, verify, and adjust the flame temperature and rate of rise time.
•Touch Screen Controller
