180W High Power LED Module 19000lm 120 Degree For Flood Lig
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Bridgelux 45mil 19000lm 180W high power led for outdoor lighting
Quick Detail:
- 180W power consumption
- 42-48V Voltage, max 4500mA
- Bridgelux chip customized
- Warm white/Neutral white/Cool white optional
- Light efficiency 100-120lm/W, Ra>70
- Size 82mmx86mm
- Working temperature -40—65℃
- Beam angle 120°
- CE, RoHS, EN62471 compliance
- 2 years warranty

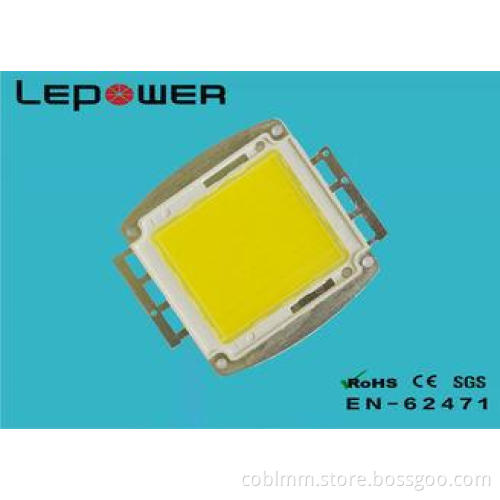

180W High Power LED Module 19000lm 120 Degree For Flood Light
Description:
- 180W High power led module, 82mmx86mm, easy assemble
- Red copper led base, excellent thermal dissipation
- Bridgelux led chip, super reliability
- High light efficiency up to 120lm/W (subject to chip brand)
- 1.2mil 99.99% gold wire, high quality ensured.
- Widely used in flood light, flash light, stage light, etc.
Applications:
- Flood light
- High bay light
- Street light
- Other outdoor lighting
Specifications:
Package Dimensions
Equivalent circuit diagram
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.25 unless otherwise noted
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Min. |
Avg. |
Max. |
Units |
|
Luminous Flux |
Φ |
IF=4160mA |
18000 |
-- |
19800 |
lm |
|
Color Temperature/ Color coordinates |
CCT |
IF=4160mA |
6000 |
-- |
6500 |
K |
|
Forward Voltage |
VF |
IF=4160mA |
30 |
-- |
51 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=4160mA |
− − |
0.02 |
− − |
°C/W |
|
Reverse Current |
IR |
VR=34V |
− − |
− − |
2 |
μA |
|
Viewing Angle |
2Θ1/2 |
IF=4160mA |
− − |
120 |
− − |
Deg |
Absolute Maximum Rating(At TA=25°C)
|
Parameter |
Symbol |
Ratings |
Units |
|
Power Dissipation |
PD |
180 |
W |
|
Continuous Forward Current |
IF |
4160 |
mA |
|
LED Junction Temperature |
TJ |
120 |
°C |
|
Reverse Voltage |
VR |
36 |
V |
|
Operating Temperature Range |
TOPR |
-20°C To +60°C |
|
|
Storage Temperature Range |
TSTG |
-40°C To +100°C |
|
|
Manual Solder Temperature |
TSOL |
350°C± 20°C For 3~5 Seconds |
|
|
ESD Sensitivity |
ESD |
2000V BM |
|
NOTE: (Tolerance: Iv ±10%, λd ±2nm, Vf ±0.05V)
Competitive Advantage:
1. Top brand materials. We use copper LED base, Bridgelux 45mil LED chip, 1.2mil 99.99% gold wire, Japanese silicon gel and phosphor.
2. Mature production technique. We have a skillful engineering team, 8 years experiences. automotive die-bonding & wire bonding machines, exclusive technology patents, which ensure our products outstanding.
3. Strict quality control system. Our company is running under the ISO9001:2008 quality control system, we have very strict quality requirements during each procedure. Also, we have imported advanced quality testing equipments.
4. Severe quality testing. We have done some experiments to check our products quality. For example, we keep our LED boiling for 5 minutes in boiling water, then we test, it can still work. We keep our LED working in an oven, then we make the inside temperature cycle from -35 Celsius degree to 105 Celsius degree, over 50 cycles, we test it, it can still work.
Shenzhen Lepower Opto Electronics Co., Ltd. was founded in 2005. Our company is a wholly
owned subsidiary of Liyang Electronics (HK) Limited. We are state-level key high-tech
enterprise mainly engaged in developing, producing and selling the high power LEDs and LED
lighting applications.
We are committed to the research and development and industrial production of high
brightness, lower energy consumption, long time span, good stability and high reliability
high power LED
We offer services with LED design and production, LED optical lens design and production,
LED street light design and production, LED spotlight, high bay light and other lighting
design and production
