Energy Saving 30 % 1R1G1B P10 Led Advertising Billboard Out

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China

Product Description

Energy Saving 30 % 1R1G1B P10 Led Advertising Billboard Outdoor VGA / Svideo

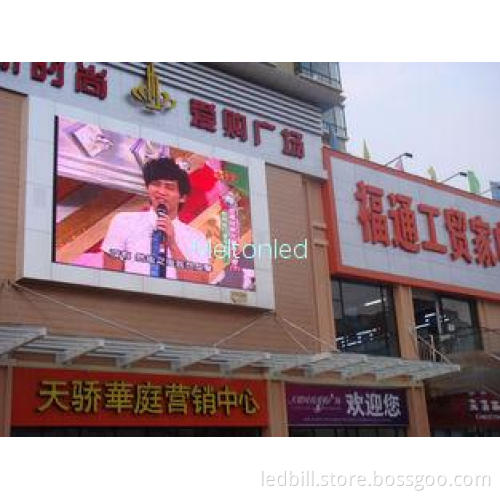

Applications:

This kind of LED 1R1G1B full color led display is appliled for displaying advertising, city beautifying, information publicity,

great concerns and relative activities.

Specifications:

Product model number	Mled-PH10-807
1.Pixel
Pixel L ED	348
Pixel Configuration	1 R, 1G , 1B
Wave length ( nm )	R: 800-1000 , G:2040-2450, B: 360-430
Pixels Pitch ( mm )	10
2 . Module
Module Size ( mm )	160 * 160 * 20
Module Pixels (dot)	16 * 16
3.Unit box
Module quantities in a unit box	6 (L) * 6 ( H )
Unit box size ( mm )	960 (L) * 960 (H) * 150
Unit box Pixels ( dot )	96 * 96
Unit box material	Aluminum or Iron
Unit box weight (kg)	Aluminum : 40 or Iron : 55
4.Packaging
Packing Way	Two unit boxes
Packing box material	Wooden case or Flight box
5.electricity parameter
Pixel density (dots/ m2 )	10000
White Balance Brightness ( cd/m2 )	≥7500
Color temperature ( K )	5000-9500 (choice by user)
Brightness Adjusted	100 grade by software or by Auto-optic induced.
View Angel	Horizontal 120 ° ; Vertical 70 °
Best viewing distance ( m )	16-150
Communication distance ( m )	Internet Wire : 120 Fiber Cable : 1000
Screen work Method	1/4 scan
LED driving method	Constant driving current
Gray Grades	16384 levels for each color
Display Color	4 , 398 , 046 , 511 , 104
Refresh Frequency ( Hz )	≥ 800
Picture display method	Dots to dots display synchronized with CRT
Signal interface	DVI
Input signal	Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV
Display format	800 * 600 , 1024 * 768 , 1280 * 1024
Software	Support windows series system
Protection grades	IP 65
Working temperature (ºC )	-10 +50
Humidity ( RH )	Up to 95
Stored temperature ( ºC)	-30 +70
Screen Lifetime(hours)	≥100, 000
Out of controlled dots	≤3/10, 000 (Out of controlled dots means the pixels of which the brightness, and the wave length are both >10% depart to the normal one)
Whole display flatnes	Less than 1mm Juncture
Maintance way	Back-maintained or front-maintained,
Maintance way	modules displaced
Switch power supply	Switch power supply (include CE/GS or UL/CSA certificate) 110V/60HZ , 220V/50HZ
