Long Lifespan Rc Car Gearbox , Customized Powerful Dc Brush
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

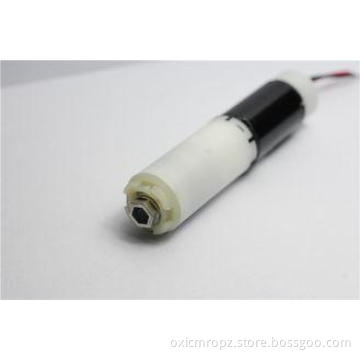

Long Lifespan Rc Car Gearbox , Customized Powerful Dc Brush Motor
Features
- long lifespan: for 300 hours

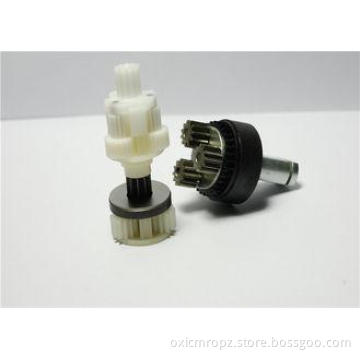

- different speed reduction stages
- different torques for various requirements
- ODM & OEM available for special technology requirements
Reliability Test
- Noise Test
- Water-proof Test
- Life Test
- Impact Test
- Storage Test
- Salt Spray Test
- Environmental Related Substance
Specifications
| Model | No Load | At Rated Load | Max Rated Torque of Gear Box | Max Instant Torque of Gear Box | Transmission Reduction | Overall Length L | Gear Box Length L1 | |||||
| Speed | Current | Speed | Current | Torque | ||||||||
| rpm | mA(MAX) | rpm | mA(MAX) | gf.cm | mN.m | gf.cm | gf.cm | Ratio | Stage | |||
| ZWPD02020-16 | 459 | 43 | 375 | 154 | 135 | 13 | 1500 | 4500 | 16/1 | 2 | 43.4 | 18.3 |
| ZWPD02020-24 | 306 | 43 | 250 | 154 | 203 | 20 | 1500 | 4500 | 24/1 | |||
| ZWPD02020-36 | 204 | 43 | 167 | 154 | 305 | 30 | 1500 | 4500 | 36/1 | |||
Description
|
Parameters |
diameter |
20mm |
|
motor |
DC brush motor |
|
|
noise level |
less than 60dB at the 30cm distance |
|
|
life time |
300 hours |
|
|
working temperature |
-40 to 95℃ |
|
|
tolerance |
<0.3mm |
|
|
Certification |
ROHS/ISO9001/ISO14001/SGS/TS16949 |
|
|
Suitable for |
Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc. |
|
|
OSD Language |
English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean |
|
|
The basic specifications for reference only, specifications can be customized. |
||
Tooling Payment terms
1) Advance Payment: 50% of tooling.
2) After sending the first sample for testing: 30% payment of tooling
3) Qualified the samples: 20% payment of tooling and samples fee.
Once we got the 50% tooling payment, we will launch the project and begin production.
The lead time need 45 days.
Competitive Advantage
- 18-year experience in manufacturing motor gearbox
- Experienced Staff: average 7-year experience in R&D , ODM &OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 15 working days after payment
- Quality Approvals
- Small Orders Accepted
- Partners: HUAWEI, Panasonic, Bosch, SAMSUNG, other World Fortune 500 companies, etc.
- Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
Applications
Typical Application: Mobile telecommunication base station, Electric curtain, Medical device, Rotating advertisement, Automatic teller machine, and etc.
2D Drawing
Main Products
1) Precise component and assembly of plastic and metal powder injection;
2) Precise motor gear box reducer: diameter 4-40mm,
Output speed: 5-2000rpm,
Reduction ratio: 2-2000,
Output torque: 1.0gf-cm to 50Kgf-cm;
3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.
