12V / 24V Plastic / Metal Motor Gearbox For Headlamp Adjust
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

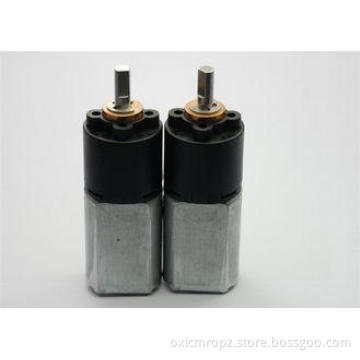

12V / 24V Plastic / Metal Motor Gearbox For Headlamp Adjuster In Automobile
Specifications:
|
Technical Parameter |
diameter |
8mm |
|
voltage |
12/24V |
|
|
current |
28mA or customized |
|
|
motor |
DC brush motor |
|
|
torque |
25-85gf.cm or customized |
|
|
electric adjustable stroke |
4.7±0.5mm |
|
|
noise level |
less than 40dB |
|
|
speed |
40-1000 rpm |
|
|
ratio |
26-700 or customized |
|
|
life time |
500 hours |
|
|
working temperature |
-40 to 95℃ |
|
|
Axial clearance |
<0.3mm |
|
|
Certification |
ROHS/ISO9001/ISO14001/SGS/TS16949 |
|
|
Suitable for |
Audi, Bora, Cherry, KIA, etc |
|
|
OSD Language |
English, Chinese, French, German, Italian, Spanish, Arabic |
|
|
The basic specifications for reference only, specifications can be customized. |
||
Description:
Main Products:
1) Precise component and assembly of plastic and metal powder injection;
2) Precise motor gear box reducer: diameter 4-40mm,
Output speed: 5-2000rpm,
Reduction ratio: 2-2000,
Output torque: 1.0gf-cm to 50Kgf-cm;
3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.
Applications:
Automobile unit,
automatic kitchen & toilet,
home appliance,
instrument & meter,
medical appliance,
personal care,
safety monitor,
digital camera,
model aero planes and toy, etc.
Competitive Advantage:
18-year experience in manufacturing motor gearbox
Experienced Staff: average 7-year experience in R&D
ODM & OEM available
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Lowest Price
Product High Performance: Low noise, High efficiency, Long lifespan
High precision and large range of application
Prompt Delivery
Quality Approvals
Good Service
Small Orders Accepted
Partners: HUAWEI, Panasonic, Bosch, SAMSUNG, other World
Fortune 500 companies, etc.
Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino
EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
