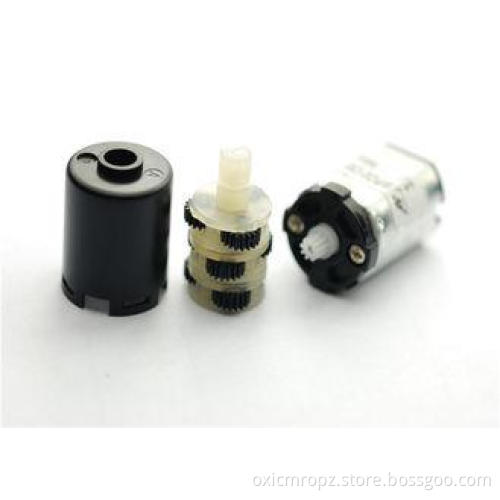

DC brush Steady Speed Micro Planetary Gearbox ZWPD012012-86
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
DC brush Steady Speed Micro Planetary Gearbox ZWPD012012-864
Specifications
|
Technical Parameter |
diameter |
12mm |
|
voltage |
3V |
|
|
motor |
DC brush motor |
|
| reduction ratio |
864 or customized |
|
|
noise level |
less than 40dB |
|
|
life time |
500 hours |
|
|
working temperature |
-40 to 95℃ |
|
|
tolerance |
<0.3mm |
|
|
Certification |
ROHS/ISO9001/ISO14001/SGS/TS16949 |
|
|
Suitable for |
Optical equipment, Medical device, Electronic switch(lock), Toy, Robot, Electric toothbrush, and etc. |
|
|
OSD Language |
English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean |
|
|
The basic specifications for reference only, specifications can be customized. |
||
| Model | At Rated Load | Max Rated Torque of Gear Box | Max Instant Torque of Gear Box | Transmission Reduction | Overall Length L | Gear Box Length L1 | ||
| Speed | Current | Torque | ||||||
| rpm | mA(MAX) | gf.cm | gf.cm | gf.cm | Ratio | mm | mm | |
| ZWPD012012-864 | 12 | 135 | 547 | 2000 | 3600 | 864/1 | 33.3 | 18.3 |
| ZWPD012012-1296 | 7.7 | 135 | 820 | 2000 | 3600 | 1296/1 | ||
Description
Main Products
1) Precise component and assembly of plastic and metal powder injection;
2) Precise motor gear box reducer: diameter 4-40mm,
Output speed: 5rpm to 2000rpm,
Reduction ratio: 2-2000,
Output torque: 1.0gf-cm - 50Kgf-cm;
3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.
Applications
Optical equipment, Medical device, Electronic switch(lock), Toy, Robot, Electric toothbrush, E-cigarette, and etc.
Quality Control
* Life Test
* Noise Test
* Water-proof Test
* Salt Spray Test
* Impact Test
* Storage Test
* Environmental Related Substance
