Substrate K9 Plano-Convex Lens Optical Lenses with Surface
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

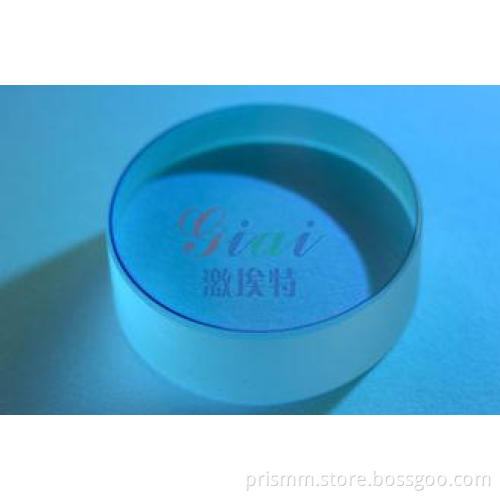

Surface Quality 60 / 40 Plano-Convex Lens Optical Lenses with Substrate K9
Plano-Convex lenses
Specifications:
|
Diameter (mm) |
6.0 |
|
Diameter Tolerance (mm) |
+0.0 / -0.20 |
|
Clear Aperture CA (mm) |
5.4 |
|
Effective Focal Length EFL (mm) |
6.0 |
|
Back Focal Length BFL (mm) |
4.60 |
|
Focal Length Tolerance (%) |
1 |
|
Radius R1(mm) |
4.71 |
|
Edge Thickness ET (mm) |
1.42 |
|
Center Thickness CT (mm) |
2.50 |
|
Center Thickness Tolerance (mm) |
0.1 |
|
Surface Quality |
60 - 40 |
|
Centering (arcminutes) |
3 - 5 |
|
Bevel |
Protective bevel as needed |
|
Focal Length Specification Wavelength (nm) |
587.6 |
|
Substrate |
K9 |
|
Coating |
Laser V-Coat |
|
Coating Specification |
Rabs<0.25% @ 1064nm |
Description:
Optical Lenses are optical components designed to focus or diverge light. Optical Lenses, which may consist of a single or multiple elements, are used in a wide variety of applications from microscopy to laser processing. Many industries utilize Optical Lenses, including life sciences, imaging, industrial, or defense. As light passes through a lens, it is affected by the lens’ profile or substrate. A Plano-Convex (PCX) or Double-Convex (DCX) lens causes light to focus to a point, while a Plano-Concave (PCV) or Double-Concave (DCV) lens causes the light traveling through the lens to diverge. Achromatic Lenses are ideal for applications requiring color correction, while Aspheric Lenses are designed to correct spherical aberration. Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) lenses are ideal for transmitting the Infrared (IR) spectrum, while Fused Silica is well suited for the Ultraviolet (UV).
Our standard Plano-Convex lenses are available in a variety of laser line V-Coat AR coating options. Designed for maximum throughput at the specified laser wavelength, these lenses are ideal for applications utilizing low power HeNe, Diode, and Nd:YAG laser sources. With a maximum reflection of <0.25% per surface at the design wavelength, the lenses will provide superior transmission in applications utilizing multiple optical components.
Competitive Advantage:
Plano-Convex lenses,competitive price , good quality, delivery on time, providing perfect after-sales service, to provide customers with professional customized products of parameter. We will supply you with best solution.
Why us?
1 Service time: 24 hours waiting for you.
2.Fast Response: 2 hours within our worktime, 12 hours get off work.
3.Good Service: We can supply you from design,measure to coating one stop service.
4. MOQ: No MOQ requirement, you can set your order freely.
5. After-sales service: If bad quality, we will refund .
How to Order ?
Step 1. Send the inquiry at the bottom of the product.
Step 2. We will response or quote you within 24 hours.
Step 3. Place order through email, fax directly.
