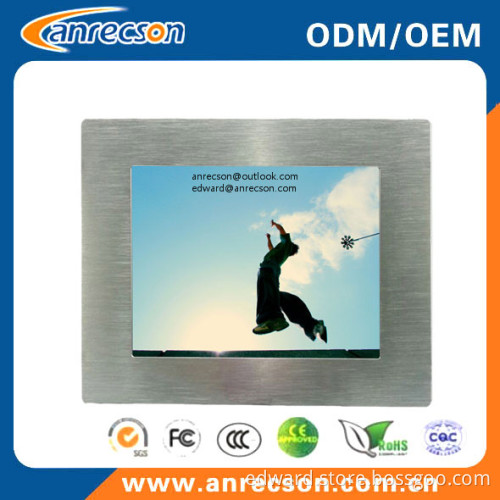

8 inch industrial waterproof IP65 fanless touch panel PC all in one
- Incoterm:
- EXW
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 3 Days
- Transportation:
- Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Productivity: | 2000pcs per month |
Supply Ability: | 5000pcs |
Incoterm: | EXW |
Certificate: | ISO9001/CCC/CE/FCC |
Transportation: | Air |
Product Description
Product Description
Display Type/Size Color TFT LCD/8″
Active Display Area (mm) 162mm(W)×121.5mm(H)
Display Mode 4:3
Max Resolution 800×600
Support Color 16.7M
Luminance(cd/m2) 250cd/m²
Backlight LED backlight
Contrast Ratio 500:1
Response Time 10ms
Pixel Pitch 0.0675(W)×0.2025(H)
Viewing Angle 140/120(H/V)
Chip set Intel N2807+NM10
CPU N2807
Video Intel GMA3650,640MHz
Internal memory DDR3(800/1066/1333MHz)Typ. 2G (Max 4G)(optional)
Hard disk 16GB high speed solid state disk (optional)
HDMI ports 1xHDMI Ports
COM ports Defaultx2 COM(optional)
Ethernet ports 2xRJ45 Realtek 8111E 1000 Mbps /(optional
Wi-Fi connectivity supporting 802.11 a/b/g.)
Audio Realtek HD ALC269Q
Line-In/Line-Out/Speaker out with 1W AMP Circuit
USB ports Defaultx4 USB(Max x6)
TouchScreen Type Resistive(4-wire/)
Optional Touch Type SAW/IR
TouchScreen interface Serial (RS232) or USB
Input Voltage DC12V 4A
Output Rating ≤20W
Operating Temperature -20~60℃
Relative Humidity 20(%RH)~90(%RH)
Active Display Area (mm) 162mm(W)×121.5mm(H)
Display Mode 4:3
Max Resolution 800×600
Support Color 16.7M
Luminance(cd/m2) 250cd/m²
Backlight LED backlight
Contrast Ratio 500:1
Response Time 10ms
Pixel Pitch 0.0675(W)×0.2025(H)
Viewing Angle 140/120(H/V)
Chip set Intel N2807+NM10
CPU N2807
Video Intel GMA3650,640MHz
Internal memory DDR3(800/1066/1333MHz)Typ. 2G (Max 4G)(optional)
Hard disk 16GB high speed solid state disk (optional)
HDMI ports 1xHDMI Ports
COM ports Defaultx2 COM(optional)
Ethernet ports 2xRJ45 Realtek 8111E 1000 Mbps /(optional
Wi-Fi connectivity supporting 802.11 a/b/g.)
Audio Realtek HD ALC269Q
Line-In/Line-Out/Speaker out with 1W AMP Circuit
USB ports Defaultx4 USB(Max x6)
TouchScreen Type Resistive(4-wire/)
Optional Touch Type SAW/IR
TouchScreen interface Serial (RS232) or USB
Input Voltage DC12V 4A
Output Rating ≤20W
Operating Temperature -20~60℃
Relative Humidity 20(%RH)~90(%RH)
