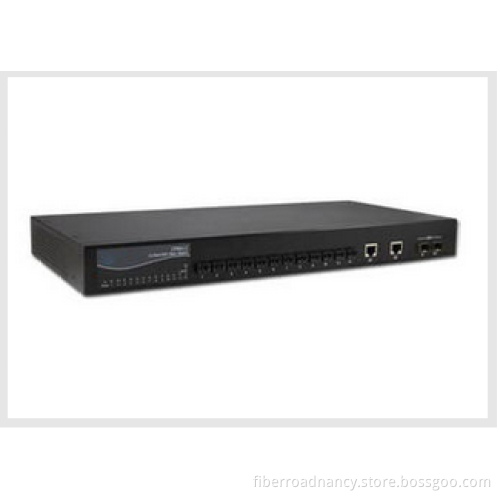

IEEE 802.3x 12 Port Plastic Fiber Optics POF Ethernet Switches AC100V - AC240V

12-port 100Base-FX POF Ethernet switch with 2 Gigabit TP/SFP ports.
Supports full-duplex operations at its fiber-optic interface in the form factor of OptoLock interface.
The OptoLock is one kind of POF (plastic optic fiber) interface that suit for low-cost and high-speed data transmission.
The OptoLock patch cord that can transmit data at S200 (250Mbps) speed for 50 meters.
The two Gigabit TP and SFP ports can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (small factor pluggable) interface, which provide high bandwidth and performance for Ethernet up link.

Technical Parameter:

Standard:	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3q IEEE 802.3p
Port:	12 100Base-FX POF Optolock 2-Port Gigabit TP+SFP ports
Switch Processing Scheme	Store-and-forward
Throughput(packet per second)	3.571Mpps
Address Table	4K entries
Share data Buffer	2.75Mbits
Maximun Transmit Unit	1536 Bytes
Flow Control	Back pressure for Half-Duplex, IEEE 802.3x Pause Frame for Full-Duplex
Power Input	AC100V-AC240V 50-60Hz
Operational Temperature:	0 ℃ ~ 50 ℃
Storage Temperature:	-10 ℃ ~ 60 ℃
Humidity:	5%~90% non-condensing
Dimensions:	442mm x 210mm x 43mm (W x D x H)
