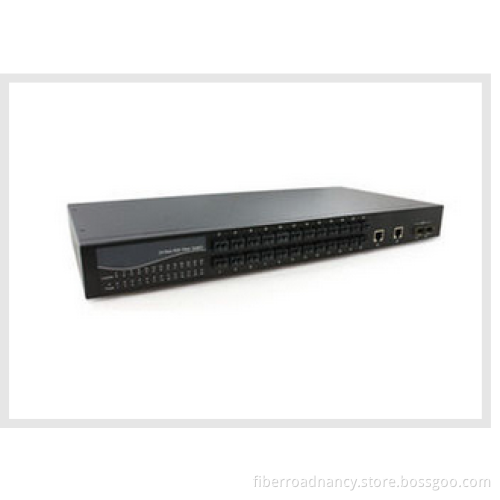

3.571Mpps Gigabit TP SFP Plastic Optical Fiber POF Ethernet Switching 24 Port

24-port 100Base-FX POF Ethernet switch with 2 gigabit TP/SFP ports.
It supports full-duplex operations at its fiber-optic interface in the form factor of OptoLock interface.
The OptoLock is one kind of POF (plastic optic fiber) interface that suit for low-cost and high-speed data transmission.
The OptoLock patch cord can transmit data at S200 (250Mbps) speed for 50 meters.
The two gigabit TP and SFP ports can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (small factor pluggable) interface, which provide high bandwidth and performance for Ethernet up link.
For efficient management, the POF-CP8024S is equipped with web interface and can be programmed for basic switch management functions such as port speed configuration, VLAN, port mirroring, QoS, bandwidth control, IGMP snooping and misc configuration.

Technical Parameter:

Standard:	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3q IEEE 802.3p
Port:	24-Port 100Base-FX OptoLock 2-Port Gigabit TP+SFP ports
Switch Processing Scheme	Store-and-forward
Throughput(packet per second)	3.571Mpps
Address Table	4K entries
Share data Buffer	2.75Mbits
Maximun Transmit Unit	1536 Bytes
Flow Control	Back pressure for Half-Duplex, IEEE 802.3x Pause Frame for Full-Duplex
Power Input	AC100V-AC240V 50-60Hz
Operational Temperature:	0 ℃ ~ 50 ℃
Storage Temperature:	-10 ℃ ~ 60 ℃
Humidity:	5%~90% non-condensing
Dimensions:	442mm x 210mmx 43mm (W x D x H)
