One to One Managed Gigabit Fiber Optic Media Converter with remote control
- Payment Type:
- T/T, L/C, D/A, D/P, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ShenZhen |
|---|---|
| Productivity: | 100% |
| Supply Ability: | 3000PCS/month |
| Payment Type: | T/T,L/C,D/A,D/P,Western Union |
| Incoterm: | EXW |
| Certificate: | CE ISO9000 SGS FCC |
| Transportation: | Ocean,Land,Air |

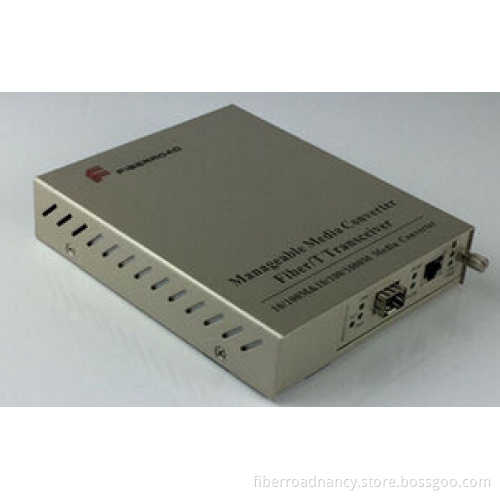

One to One Managed Gigabit Fiber Optic Media Converter with remote control
10/100/1000M IEEE802.3ah OAM manageable ethernet fiber media converter can supervise the real time situation of remote manageable fiber media converter and set the functions. With this system, the response speed of the operator is quickened, the daily maintenance and network expenditure of the operators are reduced, and the serving quality of them is enhanced.
Features
Built-in IP-based Web Interface
Supporting remote and local management
Supporling IEEEE 802.3X Frame Flow Control for Full-Duplex mode
Store and Forward mechanism
Manual IP address setting/DHCP client for IP address assignment
SNMP v1 / v2c monitor / private Enterprise MIB
Event trap and SNMP trap support
Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port
Supports Port Status / Ethernet Statistics on both TP and Fiber intertace
Supports Maximum frame size to 16K bytes
Loop detection / Broadcast / Multicast / Unicast storm control
Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN
Advantages
802.1p Tag Priority / IP address priority / IP DSCP option in
Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies
TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
16 TCP / UDP Filter groups
Password setting, IP setting and devices description setting through Planet Smart discovery utility
Firmware upgrade via remote Web interface
External DC 5V 2A power supply
LED indicators for easy network diagnosing
Reset Button at the front panel for the factory default reset
Choice of fiber-connector from SC, LC, WDM, multi-mode /
single-mode fiber /1000Base-SX / LX SFP module
Specifications
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3Z,IEEE802.3x ,100Base-FX |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Multi-mode: 2 km; single mode: 20/40/60/80/100/120 km; Category-5 twisted pairs: 100m |
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Input voltage |
DC 5V |
|
Power consume |
<3W |
|
Operating temperature |
0~50ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
156mm (W)×128mm(D)×32 mm(H) |
