Introduction

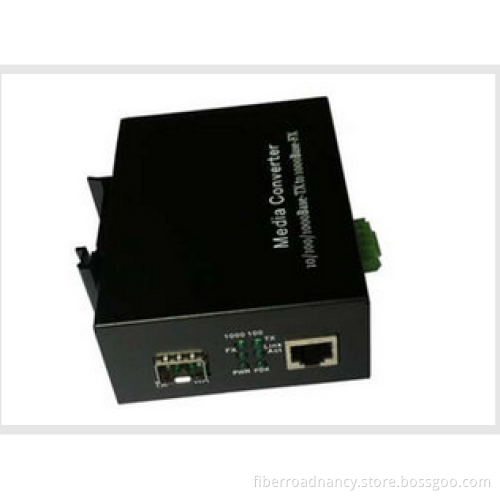

FR-IGMC-1S1T is a speediness 10/10/1000Base-TX Industrial Ethernet Media Converter, easy to connect

server, repeater, switch,device to device, Can satisfy customers require for long distance, high speed,

wide broadcast.

FR-IGMC-1S1T supports 1 TP ports and 1 SFP SLOT fiber ports. TP(RJ45) support 10/100/1000Base-T(X), Full/Halfduplex mode,and auto MDI/MDI-X connection;1000BaseFX supports single-/multi-mode, SC/ST connector, optional.
It adopt industry standard design, IP40 protection, power supply input(12V~36VDC), -40 to

80°C working temperature.

Key Features

Ø IEEE802.3/802.3u/802.3x,store and forward

Ø Plug-and-play, easy to installation

Ø 10/100/1000M, F/H duplex, MDI/MDI-X auto negotiation

Ø -40℃ to 80℃ operating temperature range

Ø Designed for industrial applications. IP40 protection

Specification

Ø Standards: comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX

Ø RJ45 port rate: 10/100/1000BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection

Ø Fiber Ports: 1000BaseFX ports (SC/ST/FC/LC connector, optional)

Ø Single-mode: 20, 40,60, 80,100,120Km,optional

Ø Multi-mode: 550M

Ø Wavelength: 850nm, 1310 nm, 1550nm

Ø Typical 1000Base-FX: Multi-mode:1.25G, 1310nm, 2Km, average output≥-18dBm, sensitivity≤-35dBm

Single-mode:1.25G, 1310nm, 20Km, average output≥-12dBm, sensitivity≤-36dBm

Power Input options

Ø Input Voltage: 24VDC(9~36V DC)

Ø Opposite connection protection

Environmental Limits

Ø Operating Temperature: -40 ℃to 80°℃

Ø Storage Temperature: -40℃ to 85℃
Ambient Relative Humidity: 5% to 95% (non-condensing)
