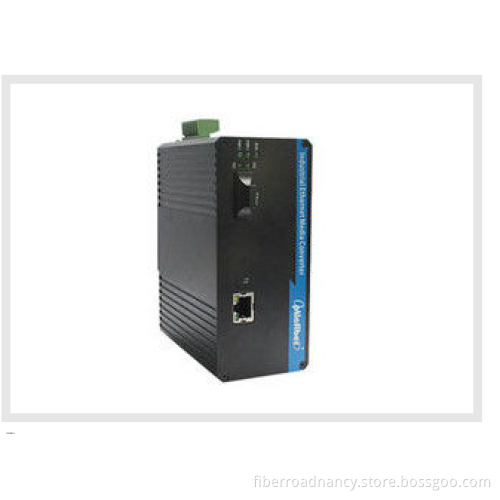

10 / 100Base-TX Industrial Fiber Media Converter 100Base-FX Media Converter
A speediness 10/100Base-TX Industrial Ethernet Media Converter, easy to connect server, repeater, switch, device to device, Can satisfy customers require for long distance, high speed, wide broadcast.
supports 1 TP ports and 1 fiber ports. TP (RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100BaseFX supports single-/multi-mode, SC/ST/FC/LC connector, optional. adopt industry standard design, IP40 protection, power supply input(9V~36VDC), -40 to 80°C working temperature.
Key Features
- IEEE802.3/802.3u/802.3x,store and forward
- Plug-and-play, easy to installation
- 10/100M, F/H duplex, MDI/MDI-X auto negotiation
- -40℃ to 80℃ operating temperature range
- Designed for industrial applications. IP40 protection
Specification
- Standards: comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
- RJ45 port rate: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection
- Fiber Ports: 100BaseFX ports (SC/ST/FC/LC connector, optional)
- Single-mode: 20, 40,60, 80,100,120Km,optional
- Multi-mode: 2Km
- Wavelength: 850nm, 1310 nm, 1550nm
- Typical 100Base-FX: Multi-mode:155Mbps, 1310nm, 2Km, average output≥-18dBm, sensitivity≤-35dBm
- Single-mode:155Mbps, 1310nm, 20Km, average output≥-12dBm, sensitivity≤-36dBm
Technical Parameter:
Access Method: 10/100Mbps
Standard: IEEE802.3u , IEEE802.3, IEEE802.1,IEEE802.3x
Wavelength: 850nm/1310nm/1550nm
Distance: Dual Fiber MM : 2Km
Single Fiber SM : 20/40/60/80/100/120Km
Power Supply: 24VDC(9~36V DC)
Operating Temperature: -40 ~ 80 ℃
Humidity: 5%~90%
Storage Temperature: -40~ +85 ℃
Dimension: 60mm (H)* 112mm (W)* 138mm (D)
House Protection: IP40 protection, Aluminium Alloy
Installation: DIN-Rail or wall mounting
Approvals
EMI: FCC Part 15, CISPR (EN55022) class A
EMS:
EN61000-4-2 (ESD),Level 3
EN61000-4-3 (RS),Level 3
EN61000-4-4 (EFT),Level 3
EN61000-4-5 (Surge),Level 3
EN61000-4-6 (CS),Level 3
EN61000-4-8,Level 3
Shock: IEC 60068-2-27 PASS
Free Fall: IEC 60068-2-32 PASS
Vibration: IEC 60068-2-6 PASS
