10 / 100 / 1000Base-TX Industrial Fiber Media Converter to 1000Base-FX Converter
- Payment Type:
- T/T, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Land, Air
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | ShenZhen |
---|---|
Productivity: | 100% |
Supply Ability: | 3000PCS/month |
Payment Type: | T/T,Western Union |
Incoterm: | EXW |
Certificate: | CE,ISO,SGS |
Transportation: | Land,Air |

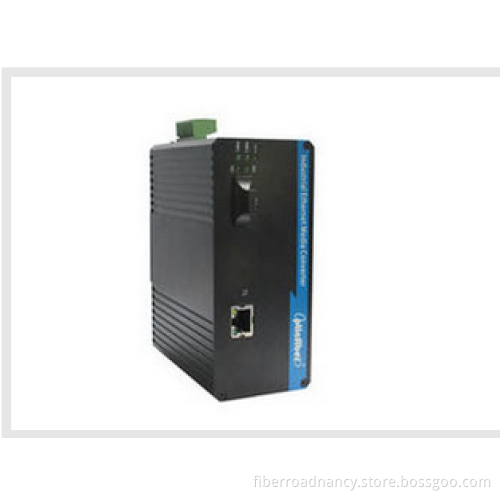

Industrial Grade 10 / 100 / 1000Base-TX to 1000Base-FX Media Converter
A speediness 10/100/1000Base-TX Industrial Ethernet Media Converter, easy to connect server, repeater, switch, device to device, Can satisfy customers require for long distance, high speed, wide broadcast. Supports 1 TP ports and 1 fiber ports. TP (RJ45) support 10/100/1000Base-T(X), Full/Half duplex mode,and auto MDI/MDI-X connection;1000BaseFX supports single-/multi-mode, SC/ST connector, optional.
Adopt industry standard design, IP40 protection, power supply input(9V~36VDC), -40 to 80°C working temperature.
Key Features
- IEEE802.3/802.3u/802.3x,store and forward
- Plug-and-play, easy to installation
- 10/100/1000M, F/H duplex, MDI/MDI-X auto negotiation
- -40℃ to 80℃ operating temperature range
- Designed for industrial applications. IP40 protection
:
Specification
- Standards: comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
- RJ45 port rate: 10/100/1000BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection
- Fiber Ports: 1000BaseFX ports (SC/ST/FC/LC connector, optional)
- Single-mode: 20, 40,60, 80,100,120Km,optional
- Multi-mode: 500M
- Wavelength: 850nm, 1310 nm, 1550nm
- Typical 100Base-FX: Multi-mode:155Mbps, 1310nm, 2Km, average output≥-18dBm, sensitivity≤-35dBm
- Single-mode:155Mbps, 1310nm, 20Km, average output≥-12dBm, sensitivity≤-36dBm
Technical Parameter: |
|
Access Method: |
10/100/1000Mbps |
Standard: |
IEEE802.3 , IEEE802.3u, IEEE802.3x, IEEE802.1 |
Wavelength: |
850nm/1310nm/1550nm |
|
Multi-mode : 500M |
Power Supply: |
24VDC(9~36V DC) |
Operating Temperature: |
-40 ~ +80 ℃ |
Humidity: |
5%~95% (non-condensing) |
Storage Temperature: |
-40~ +85 ℃ |
Dimension: |
60mm (H)* 112mm (W)* 138mm (D) |
House Protection: |
IP40 protection, Aluminium Alloy |
Installation: |
DIN-Rail or wall mounting |
