2 Gigabit SFP Slot L2 managed Fiber Optic Switches With Streamlined Web based Management

Get Latest Price

Payment Type:: T/T, Western Union

Incoterm:: EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ShenZhen
Productivity:	100%
Supply Ability:	3000PCS/month
Payment Type:	T/T,Western Union
Incoterm:	EXW
Certificate:	CE,ISO,SGS
Transportation:	Land,Air

Product Description

2 Gigabit SFP Slot L2 managed Fiber Optic Switches With Streamlined Web based Management

Description

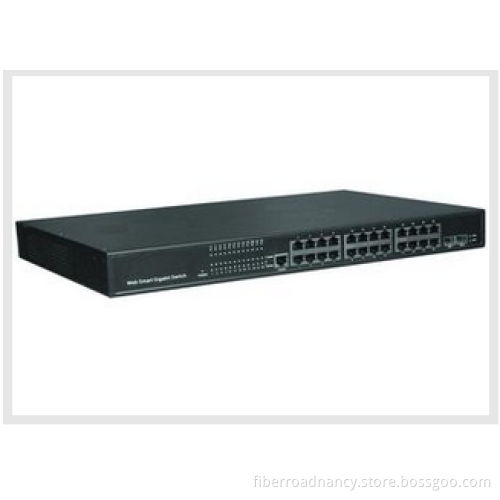

FR-24P2G-M is a web smart switch with 24 10/100Mbps ports and and 2 Gigabit SFP Slot supporting Mini GBIC modules, It integrates advanced management and security functions that provide performance and scalability. It delivers maximum throughput where you need it to high-performance workgroups at the edge of the network. What`s more, Quality of Service (QoS) provides enhanced traffic management capabilities to ensure your data transmission smoother and faster.

Versatile Layer 2 Switching Features

- Equipped with a complete lineup of L2 features, this switch includes IGMP Snooping, Port Mirroring, Spanning Tree and IEEE 802.3x Flow Control.
- VLAN Supported (IEEE 802.1Q, Port-Based, MTU), Network security is a top priority in any size business. VLANs allow the network to be segmented into groups (Departmental, Hierarchical, and Security Groups). It enhances the security of a network.
- Virtual Cable Test is designed for network administrators to quickly examine the quality of the copper cables and determine the type of cable error: opens, shorts, cable impedance mismatch, bad connectors, and termination mismatch

Quality of Service

FR-24P2G-M supports IEEE 802.1p, applies Class of Service with 4 priority queues per port: lowest, lower, higher and highest. Now the administrator can designate the bandwidth intensive and sensitive applications with high priority to remain stable and fluid so that you don`t get interrupted when you`re watching a video online or lag during an Internet phone call.

Streamlined Web-based Management

In addition, an intuitive, Web-browser interface offers the simple mart switch management, making it a snap to monitor switch performance, configures ports, even set up port trunking, VLANs, and 802.1p Priority Class prioritization

Specification

Hardware Features
STANDARDS AND PROTOCOLS	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, 802.1p
INTERFACE	24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) 2 Gigabit SFP ports
NETWORK MEDIA	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X: MMF, SMF
BUTTON	Reset Button
POWER SUPPLY	100~240VAC, 50/60Hz
DIMENSIONS(W×D×H)	44028544 mm
Performance
BANDWIDTH/BACKPLANE	8.8Gbps
PACKET FORWARDING RATE	5.36Mpps
TRANSFER METHOD	Store-and-Forward
MAC ADDRESS TABLE	4k
Software Features
BASIC FUNCTION	MAC Address Auto-Learning and Auto-aging, Storm Control (Broadcast, Multicast, Unknown unicast), Port Mirroring
TRANSMISSION METHOD	Store-and-Forward
PRIORITY	Port based Priority, IEEE 802.1p based Priority: 4 Queues, IP DSCP based Priority
LINK AGGREGATION	Port Trunking
VLAN	Port Based VLAN, 802.1Q Tag-VLAN, MTU VLAN
ACCESS CONTROL LIST	Based on Port, Based on MAC
SECURITY & AUTHENTICATION	Port Security, Statick MAC Address Binding, Dynamic MAC Address Binding
NETWORK MANAGEMENT	Web (Http) Management, Remote Management
SYSTEM FUNCTION	Fixed IP Address Setting, VCT (visual cable test ), Port Flow Statistics, TFTP Upgrade
Others
PACKAGE CONTENTS	Web Smart Switch; Power Cord; Rackmount KIT; User Guide
ENVIRONMENT	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
