3R Repeater 10G Ethernet OEO Converter

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ShenZhen
Productivity:	100%
Supply Ability:	3000PCS/month
Payment Type:	T/T,L/C,Western Union
Incoterm:	CIF
Certificate:	CE,ISO,SGS
Transportation:	Ocean,Land,Air

Product Description

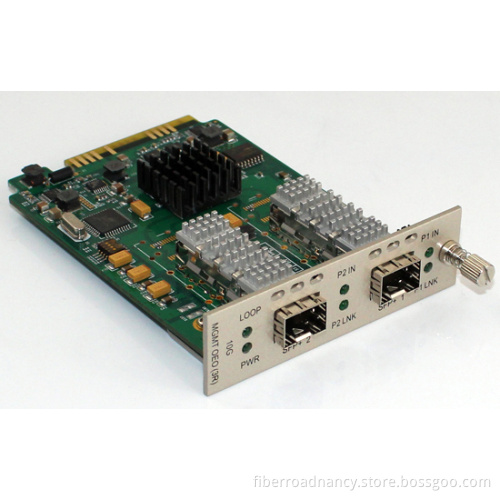

3R Repeater 10G Ethernet OEO Converter For Long Distance Transmission

Application:
media conversion and distance extension for 40G or 10G Ethernet links.
media conversion (multi-mode to single-mode) and link range extension. (The multi-mode QSFP may be used with MPO MM (40G) or with fan-out cables for quad 10G interfaces.)

Features:

Support 2U Rack(16 Slots) and independent use.
Support network management (Web SNMP, Console).
3R function.
Support Jumbo Frame.
Transparent Transpor and very low delay.
Support DMI function for QSFP fiber module.
Support 1*40G Mode and 4*10G Mode.
Support Loopback test function.
Support hot plugging.
Full State Led display.
Easy installation.

Technical Information:

Performance Data	Technical Indexes
Equipment function	3R Repeater
Protocols	Multiple functions in one module: --40G converter/repeater --Quad 10G optical multiplexer 40G link interface --Ethernet/IEEE: 802.3ba 40GE-LR4 /SR4 10G interfaces: --9.95 - 11.35 Gbps
Access Type	40G Ethernet ,
Network management information	Card type information QSFP fiber module DMI function ( Temperature , Voltage , Optical power ) Link status detector Enable/Disabled Loopback test function Enable/Disable PRBS Generator and checker function
Interface Type	QSFP To/From QSFP
Transmission Distance	Up to QSFP module ( Max 10Km )
power requirement	Rack-mountable : AC 85 ~ 220V OR DC -48V Standalone: AC 220V OR -48V Power consumption: ≤8W
Work Environment	Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing )
Dimension	Card : 11.5mm ( W ) × 78mm ( D ) Standalone : 156mm ( W ) ×128mm ( D ) ×32mm ( H )
