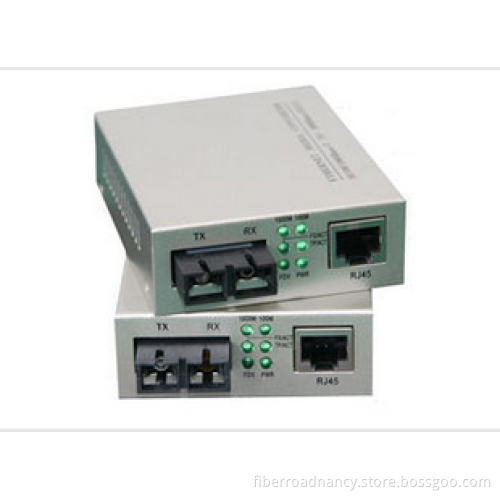

Multi / Single Mode Fiber Optic Media Converter Transmission 1000 Base-SX / LX

Quick Details:

Supporting inter-conversion between 1000 Base-T and 1000 Base-SX/LX.
Supporting full-duplex and half-duplex and its auto-sensed.
Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation.
Supporting the transmission of extra-long VLAN packets.
Supporting Quality of service and ensuring the transmission of VOIP packets.
Supporting STP to form a redundant network.
Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

Technical Parameter Description:

Technical Parameter:
Access Method:	1000Mbps
Standard:	IEEE802.3, IEEE802.3u, IEEE802.3ab , IEEE802.3z , IEEE802.1q, IEEE802.1p, IEEE802.1d
Wavelength:	850nm/1310nm/1550nm
Distance:	Dual Fiber MM : 550m Dual Fiber SM : 10/20/30 /50/ 80Km , Single Fiber SM : 20/40/ 60Km CAT5 : 100m
Conversion Method:	Media Conversion
Time Delay:	<10us
BER:	<1/1000000000
LED Indicator Lamps:	1000M , 100M , FX LINK/ACT, TP LINK/ACT, FDX, POWER
Power Supply:	DC5V 1A (external power)
Power Dissipation:	3W
Operating Temperature:	0 ~ 50 ℃
Humidity:	5%~90%
Storage Temperature:	-40~ 70 ℃
Storage Humidity:	5%~90% non-condescending
Dimension:	25mm (H)* 70mm (W)* 93mm (D)
