125M-2.5G OEO Converter 10G media Converter 2U Rack Managed

125M-2.5G OEO Converter 10G media Converter 2U Rack Managed

Get Latest Price

Payment Type:: T/T, L/C, D/A, Western Union

Incoterm:: EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ShenZhen
Productivity:	100%
Supply Ability:	3000PCS/month
Payment Type:	T/T,L/C,D/A,Western Union
Incoterm:	EXW
Certificate:	CE,ISO,SGS
Transportation:	Ocean,Land,Air

Product Description

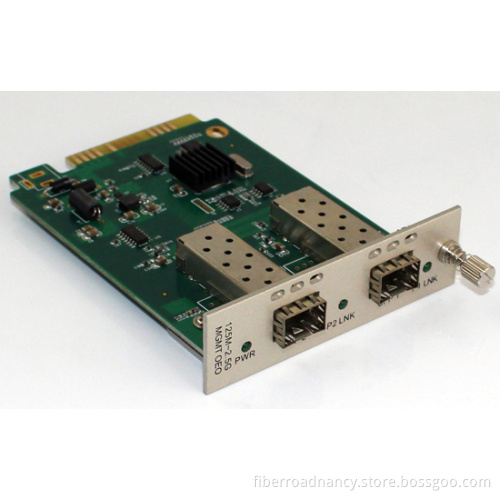

125M - 2.5G OEO Converter in 10G media Converter series / Support 2U Rack Management

• Application :

Fast Ethernet, STS-3/STM-1, ESCON/SBCON,
STS-12/STM-4, 1×Fiber Channel, Gigabit Ethernet,
2×Fiber Channel, STS-48/STM-16, 2.5 InfiniBand,

•Features:
 Support 2U Rack(16 Slots )and independent use
 support network management(Web SNMP, Console),
 Support in-band management
 support ITUT prescribed DWDM/CWDM wavelength
 transmission rate:125Mbps~2.5Gbps
 Support Jumbo Frame
 Transparent Transport and very low delay
 support DMI function for SFP fiber module
 support hot plugging
 Full State Led display
 Easy installation

Performance Data	Technical Indexes
Access Type / Transmission Speed	Fast Ethernet	125Mbps
	STS-3/STM-1	155.52Mbps
	ESCON/SBCON	200Mbps
	STS-12/STM-4	622.08Mbps
	1×Fiber Channel	1.0625Gbps
	Gigabit Ethernet	1.25Gbps
	2×Fiber Channel	2.125Gbps
	STS-48/STM-16	2.48832Gbps
	2.5 InfiniBand or PCI Express	2.5Gbps
Interface Type	SFP to/from SFP
Transmission Distance	Up to SFP module ( Max 80Km )
Local SFP	Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules's parameters
Remote SFP	Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules's parameters
power requirement	Rack-mountable : AC 85 ~ 220V OR DC -48V dual-supply,optional Standalone: AC 220V OR -48V Power consumption: ≤ 3W
Work environment	Operating Temp: 0 ~ 50 ℃ Storage Temp: -10 ~ 70 ℃ Humidity: 5%~90% ( non-condensing )
Dimension	Card : 11.5mm ( W )× 78mm ( D ) Standalone : 156mm ( W )× 128mm ( D )× 32mm ( H )

Send your message to this supplier

* From:
* To:

Ms. Nancy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

OEO Converter , 10G Media Converter , 2U Rack Managed
