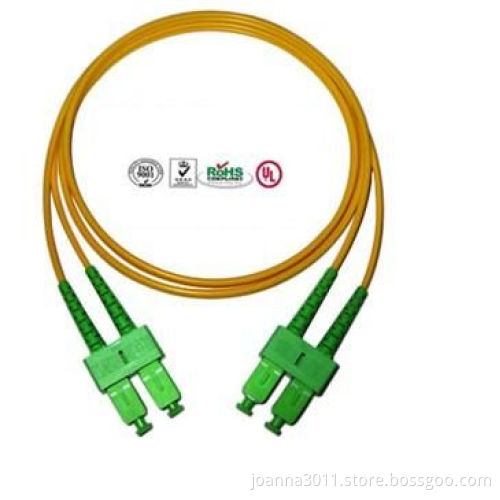

Single Mode SC Fibre Optic Patch Cords APC , Full Duplex Fiber Optic Cable
- Payment Type:
- T/T, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000pcs/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | EXW |
| Certificate: | CE,FCC,RoHS |
| Transportation: | Ocean,Land,Air |
Description:
Applicable scope:
1, optical fiber communication system,
2, optical fiber data transmission;
3, a local area network (LAN),
4, optical fiber sensors,
5, CATV.
Parameters
|
Insertion loss |
Singlemode |
PC≤0.3dB |
UPC≤0.2dB |
APC ≤0.3dB
|
|
Multimode |
PC≤0.5dB |
UPC≤0.3dB |
APC ≤0.3dB |
|
|
Return loss |
Singlemode |
PC≥48dB |
UPC≥50dB |
APC ≥60dB |
|
Multimode |
PC≥25dB |
UPC≥45dB |
APC ≥50dB |
|
|
Reaptability |
≤0.1db
|
|||
|
Changeability |
≤0.2dB |
|||
|
Working temperature |
-40 to +80℃
|
|||
|
Durability |
1000 times |
|||
|
Sustain tension |
≥100N |
|||
|
Fiber |
9/125um , 50/125um, 62.5/125um, etc. |
|||
|
Diameter |
0.9mm 2.0mm 3.0mm, etc. |
|||
|
Cable material |
PVC, LSZH |
|||
|
Cores |
Simplex, duplex, 4cores, 6cores, 8cores, 12cores, etc. |
|||
