3 port 980/1550nm,1480/1550nm Filter WDM(FWDM)
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 2000pcs |
| Supply Ability: | 2000pcs |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | CE,ROSE |
| Transportation: | Air |

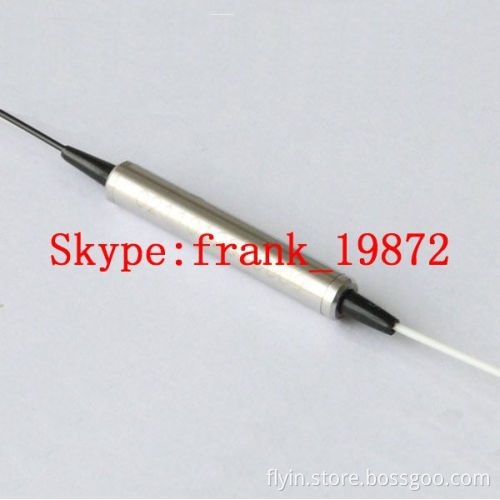

Flyin optronics' Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path .
Features
Low Insertion loss
High Return loss
Wide Operating Wavelength range
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Applications
System Monitoring
WDM Network
Transmitters and Fiber Lasers
Fiber Optical amplifier
Fiber Optic Instruments
Performance Specifications
|
Parameter |
MWDM-54 |
MWDM-59 |
|
|
Pass ChannelWavelengthRange (nm) |
1530-1565 |
1525-1600 |
|
|
Reflect Channel Wavelength (nm) |
1450-1490 |
965-1000 |
|
|
Insertion Loss (dB) |
Reflect Channel |
0.5 |
0.7 |
|
Pass Channel |
0.6 |
0.9 |
|
|
Insertion Loss Variation |
0.3 |
||
|
Isolation @Add/Drop Channel |
Reflect Channel |
15 |
15 |
|
Pass Channel |
25 |
30 |
|
|
Inertion Loss Temperature Sensitivity (dB/℃) |
0.005 |
||
|
Polarization Dependent Loss (dB) |
0.1 |
||
|
Polarization Mode Dispersion (ps) |
0.1 |
||
|
Directivity (dB) (Input to add, Output to drop, add to drop |
50 |
||
|
Return Loss (dB) |
55 |
||
|
Maximum Power Handling (mW) |
500 |
||
|
Opterating Temperature (℃) |
-10 to +75 |
||
|
Storage Temperature (℃) |
-40 to +85 |
||
|
Fiber Type |
Corning SMF-28e fiber |
Corning HI 1060 fiber at Common & Reflection port, SMF-28e fiber at pass port |
|
|
Package Dimention |
Φ5.5x34 (L38 for 900um Loose tube) |
||
Specification may change without notice.
Above specification are for device without connector.
Ordering Information
|
MWDM |
X |
X |
X |
XX |
|
|
Wavelength |
Fiber Type |
Fiber Length |
In/Out Connector |
|
54=1550 pass/1480 reflect 59=1550 pass/980 reflect |
1=Bare fiber 2=900um loose tube |
1=1m 2=2m |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
