VISHAY 1N4934GP - E3 / 54 Fast Recovery Diode SW 100V 1A DO

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	USA

Product Description

DIODE FAST SW 100V 1A DO204AL / Standard Diode 1N4934GP - E3 / 54

Quick Detail:

Part number:1N4934GP-E3/54GITR-ND
N4934GP-E3/54GICT-ND
Brand: VISHAY
Package:DO-204AL, DO-41, Axial
D/C:2014+
Price:
ROHS: Yes:
Lead time: STOCK

Description:

E-Chips Solution Co., LTD is a full-service, professional distributor of semiconductors, integrated circuits, electro-mechanical, computer peripherals, military and hard-to-find, obsolete and allocated products, servicing large-scale OEMs worldwide.

Applications:

All of the circuit board

Specifications:

Datasheets	1N4933GP - 37GP

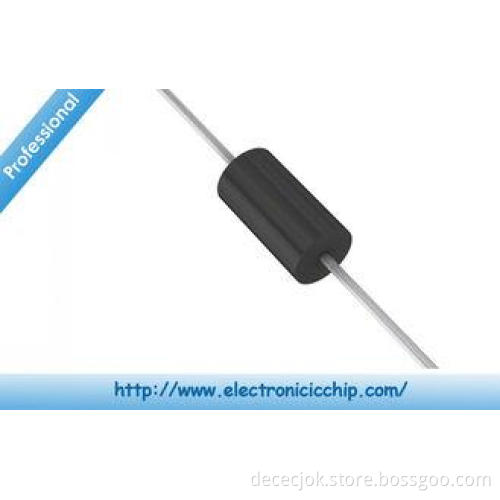

Product Photos	DO-41
PCN Design/Specification	Materials 23/Mar/2007
Standard Package	25,000
Category	Discrete Semiconductor Products
Family	Diodes, Rectifiers - Single
Series	-
Packaging	Tape & Reel (TR)
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150ns
Current - Reverse Leakage @ Vr	5µA @ 100V
Capacitance @ Vr, F	12pF @ 4V, 1MHz
Thermal Resistance	55°C/W Ja
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Supplier Device Package	DO-41
Operating Temperature - Junction	-65°C ~ 175°C

Competitive Advantage:

1. We can shipping all over the world by DHL , UPS , FedEx ,TNT, EMS and HK post. The packaging is very safe and strong. If you have any special needs please notice me.

2. It will take around 3-5 days to reach your hands.

3. Good price with good quality!

100% NEW AND ORIGINAL!
30-365 DAYS QUALITY WARRANTY!
