Ribbon Flat Fiber Optical Cable Sinlge Mode With Flame-Retardant Jacket
Features:

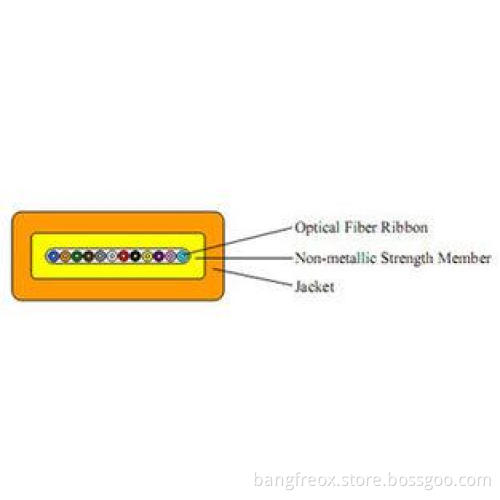

- The fiber ribbon is evenly bound with high modulus soft aramid yarn as strength memebr
- Its rectangular outer sheath is shaped by a special material extrysion technique .
- Flame-retardant jacket, easy to strip, small bending radius, good performance under stress.
Application:
1. Indoor level and vertical cabling, ceiling cabling, surface cabling etc.
2. Standard fiber core for direct splicing to connector and connecting to equipment
3. Can be used for the pigtail and patchcord
Specification:
| Fiber Count |
Out sheath Diameter |
Nominal weight | Max.tensile strength(N) | Min.Bending Radius(mm) | Max.Crush Resistance(N/100mm) | Temperature | |||
| (Core) | (MM) | (KG) | Short-term | Long-term | Dynamic | Static | Short-term | Long-term | °C |
| 2 | 3.5x2.5 | 13 | 200 | 80 | 35D | 25D | 500 | 100 | -20~60 |
| 4 | 3.5x2.5 | 13 | 200 | 80 | 35D | 25D | 500 | 100 | -20~60 |
| 6 | 4.0x2.5 | 15 | 200 | 80 | 35D | 25D | 500 | 100 | -20~60 |
| 8 | 4.5x2.2 | 15 | 200 | 80 | 35D | 25D | 500 | 100 | -20~60 |
| 12 | 4.8x2.2 | 17 | 200 | 80 | 35D | 25D | 500 | 100 | -20~60 |
Order Information:
1 Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
2 Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
3 Fiber count: 2-12
4 Cable length: 2000M/Drum( customized, MOQ=2000M)
5 Cable Jacket: PVC,LSZH,OFNR,OFNP
