Mini Breakout Fiber Optical Cable 12cores - 144cores Fiber Count For Ceiling Laying
Features:
- Large fiber count small out diameter

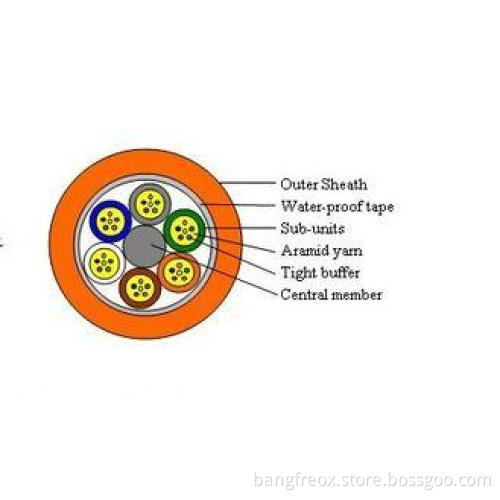

- Each individual unit cable consists of 12 fibers and has its own aramid yarn as strength memebr, high strength, good bending property, without gel inside, conevenient for splicing and cabling
- Fiber count is 12-144 cores
- Color of out jacket veries according to the type of fibers inside, can also be other color upon request
- LSZH material for out jacket, can also be other materials upon request
Application:
1. Indoor level and vertical laying.
2. Ceiling laying surface laying etc.
3. Connected to connectors of various models interconnect.
Specification:
| Fiber Count |
Out sheath Diameter |
Nominal weight | Max.tensile strength(N) | Min.Bending Radius(mm) | Max.Crush Resistance(N/100mm) | Temperature | |||
| (Core) | (MM) | (KG) | Short-term | Long-term | Dynamic | Static | Short-term | Long-term | °C |
| 12 | 3 | 7.8 | 150 | 80 | 30D | 15D | 500 | 150 | -20~60 |
| 24 | 9.5 | 72 | 300 | 160 | 30D | 15D | 1000 | 300 | -20~60 |
| 48 | 9.5 | 79 | 600 | 200 | 30D | 15D | 1000 | 300 | -20~60 |
| 72 | 11.7 | 126 | 1000 | 300 | 30D | 15D | 1000 | 300 | -20~60 |
| 96 | 14 | 178 | 1000 | 300 | 30D | 15D | 1000 | 300 | -20~60 |
| 144 | 18 | 285 | 1000 | 300 | 30D | 15D | 1000 | 300 | -20~60 |
Order Information:
1 Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
2 Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
3 Fiber count: 12-144
4 Cable length: 2000M/Drum( customized, MOQ=2000M)
5 Cable Jacket: PVC,LSZH,OFNR,OFNP
