Waterproof Fiber Optical Cable Outer Sheath Black Jacket Fo
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description
Waterproof Fiber Optical Cable Outer Sheath Black Jacket For Industrial Cable
Features:

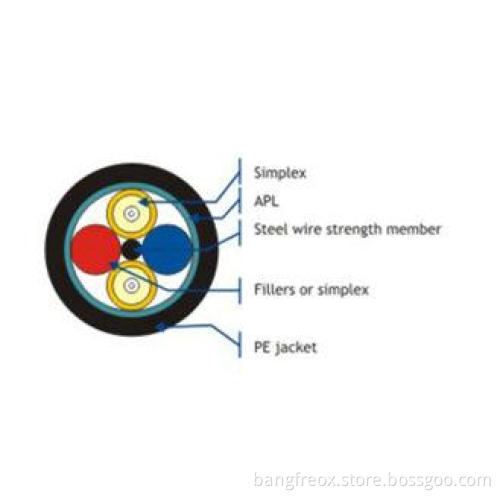

- One or more single-core cables SZ standed around the metallic central strength memeber
- Longitudinal aluminum polyethylene laminate(APL) is applied around the core as additional water barrier.
- Polyethylene(PE)jacket.
- Accurate fiber excess length ensures good performance
- Good performance in crush resistance and causticity resistance
- Strong steel wire as strength member with good performance of tensile strength.
- Suitable for execrable environment, good grounding performance
- Easy to operate, simple and reliable
Application:
1. Industrial, military, waterproof cables, redeployable systems
2. Connected to connectors of various models
3. Interconnect main cable to optic receivers
Specification:
| Fiber Count | Max Outer Diameter | Nominal weight | Max.tensile strength(N) | Min.Bending Radius(mm) | Working Temperature | Temperature | |||
| (Core) | (MM) | (KG) | Short-term | Long-term | Dynamic | Static | °C | °C | |
| Below 4 Fibers | 9.8 | 83 | 600 | 200 | 20D | 10D | -20-70 | -20~70 | |
| 11.8 | 110 | 1000 | 300 | 20D | 10D | -20-70 | -20~70 | ||
Order Information:
1 Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
2 Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
3 Fiber count: 1-12
4 Cable length: 2000M/Drum( customized, MOQ=2000M)
5 Cable Jacket: Outer sheath Black
