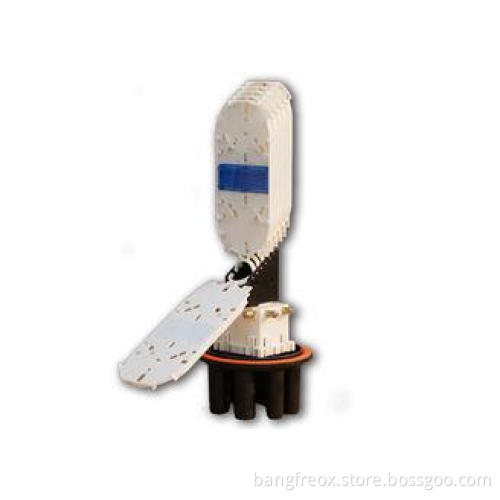

Dome Optical Splice Closure for pole mounted / man hole / direct burried
Quick Detail:
IP68 Dome type fiber optic splice closure.1 oval port+6 round ports;Max 6 trays and 144 cores;Suit for 8-25mm cables;Used for wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried.. metalbracket
Description:
1. Protection grade:IP68
2. Material:PP,ABS
3. Number of cable ports: 1 big oval port and 6 small round ports
4. Maximum Trays: 6 trays
5. Maximum Cores:144(singlel core)
6. Dimension (HxD):540mm *150 mm
7. Package material:Carton
8. Weight:4.0-4.5Kg
9. Cable diameter range:8-25mm
10. Sealing way of cables:Heat shrinking
11. Quality warrenty:2 years
12. Life span:more than 25 years
Specifications:
|
Model |
No.of ports |
Cable range |
Max trays
|
Max Capacity |
Dimensions |
|
GJS20-DR04A-7PORT-6tray |
7(1oval+6round) |
8-26mm |
6 |
144 cores |
540×ф150mm |
Competitive Advantage:
- Easy & fast installation with no special tools,suit for uncut cables
- Superior sealing performance(free sample for testing)
- The closure can be repeatly used many times.
- The cables can be fixed via 3 points,safe and reliable
- Big capacity.Enough space for surplus fibers inside the closure
- Flexible branching for fibers
- loose leaf type of splice tray fixing,easy operation
- Modular fiber management system
