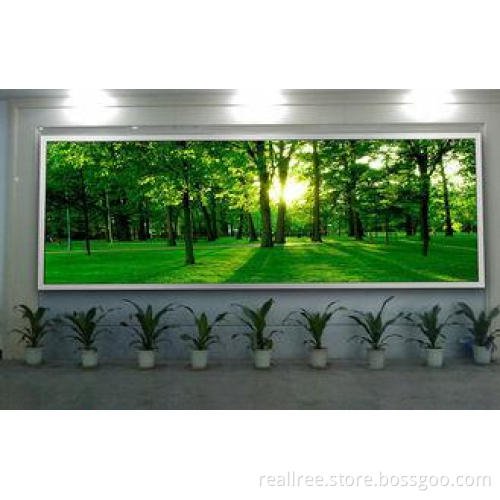

P3.75 High Definition Full Color LED Video Displays for Building Hall
Quick Detail:
1. LED Source: SMD2121
2. LED Module Size: 240mm x 240mm;
3. LED Cabinet Size: 480mm x 480mm x 65cm;
4. CE, Rohs,CCC, FCC certificate;
5. Woring voltage110V / 220V ;
6. Working temperature: -30 degree -- +60 degree
Description:
1, Easy handling: With ultra light weight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;
2, Ultra light weight: Utilizing extrusion aluminum LED cabinets;
3, Stable quality: extrusion aluminum LED display is of high quality for frequent movement from one site to next;
4, Ultra slim: Rental LED display is designed at 65mm thickness;
5, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;
6, High resolution: P3.75 is being widely choose for indoor rental LED Screens project because of its high resolution;
Applications:
Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 3.75 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD2121 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 64 x 64 |
| Module pixel | 4096 |
| Module size (mm) | 240 x 240 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 480 x 480 x 65 |
| Cabinet resolution (pixels) | 128 x 128 |
| Cabinet pixels (pixels) | 16384 |
| Cabinet material | Extrusion Aluminum |
| Cabinet weight (kg) | 6.5kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 71111 |
| Brightness(cd/m2) | ≥1500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥3m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/16 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 4000:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20~+60 |
| Stored temperature (ºC) | -30~+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47~63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, P3.75 SMD2121 LED video screens contrast ratio up to 4000:1 to present the real color;
2, P3.75 LED displays is utilizing full black color LED chips to present a pure and deep beautiful color;
3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
4, SMD2121 P3.75 LED wall is of large viewing angle at 140 degree horizontal and vertical;
5, High resolution for indoor rental events that require high quality presentation;
6, 36 months warranty.
