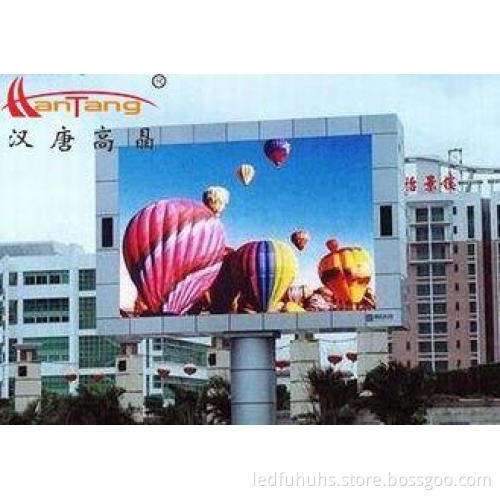

P16 Full Color Module Size 256*128 Iran Application Graphics Outdoor LED Display
Features:
1. Vivid pictures
2. Big viewing angle distance
3. Relative low price
4.Two years warranty
| Technical Parameters of P16 full color outdoor LED display | |
| Usage | Outdoor |
| Pitch(mm) | 16 |
| Pixel Constitute | 2R1G1B |
| LED--Opto+Silan | R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:Ⅳ(450-500mcd) G:Ⅳ(1600-1800mcd) G:Ⅳ(350-400mcd) |
| Pixel Density(dots/M2) | 3906 |
| Module Size(mm) | 256*128 |
| Module Resolution | 16*8 |
| Recommended Minimum Viewing Distance/M | >=15 |
| Viewing Angle(°) | V40, H110 |
| Average Power Consumption | 1000W/㎡ |
| Brightness (white balance) | >=6500cd/㎡ |
| Size of cabinet(mm) | 1024*768*150 |
| Weight of cabinet | 60kg/M2 |
| Cabinet pixels(dot) | 64*48 |
| Frame frequency | ≥60Hz |
| Refresh rate | ≥360Hz |
| Grey color | ≥16.7M |
| Brightness adjustment | 256 grade manual, 8 grade automatic |
| Average NO failure time | 5000 hours |
| Life span | 100000 hours |
| Working temperature | -30 °C~+60°C |
| Driving Voltage | 5VDC |
| Working Voltage | 110 to 220VDC |
| Scan Mode | static |
| Display Function | Video, Animation, Graphics, other |
| Operating system | Windows (2000/XP/Vista) |
| Control distance | CAT5 cable:<100 m; Single fiber:<10 km |
