Multi-core Multi-channel Pluggable MPO/MTP Fiber Optic Conn
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

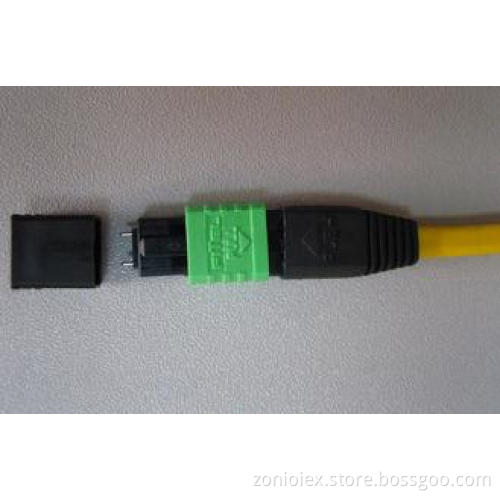

MPO/MTP Connector
PC & APC
Single mode & Multimode
Cable length optional
Feature:
- Low insertion loss and return loss
- Free-floating ceramic ferrule
- UL-rated plastic housing and boot
- Boots in a variety of colors
- High precision alignment
Availability:
-The MPO is a multi-fiber connector suitable for high-density backplane and printed circuit board (PCB) applications for data and telecom systems. MPO/MPT connectors have rectangle with a nominal diameter of 6.4mmx2.5mm ferrules and offer up to 12-times the density of standard fiber optic connectors that results in significant space and cost savings.
Specifications:
Item |
Single mode |
Multi mode |
Insertion loss |
PC＜0.5dB APC＜0.4dB |
PC＜0.4dB |
Return loss |
PC＞45dB APC＞55dB |
PC＞25dB |
Insert-pull test |
500 times＜0.5dB |
|
Operating temperature |
-40℃~ +80℃ |
|
Suitable fiber |
PC/APC(9/125um) |
PC(50/125um 62.5/125um) |
Application:
