16 Port Fiber Distribution Box Anti-UV With Ultraviolet Res
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

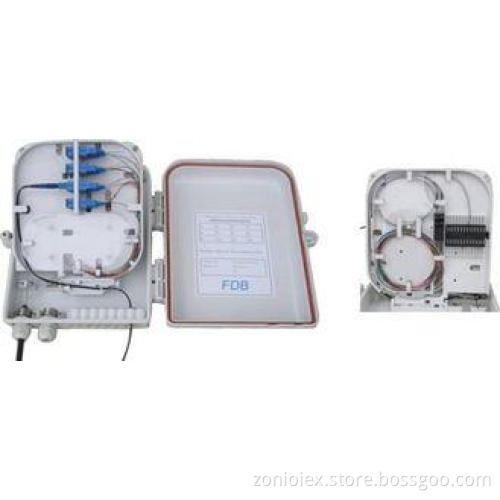

16 Port Fiber Distribution Box Anti-UV With Ultraviolet Resistance
Description:
1. Applicable in FTTH project
2. Suitable for corridor, basement, room and building's outer walls application
3. With the function of mechanical splice, fusion splice, light splitting, wiring distributions
Features:
Industry Standard User Interface, be made of high impact plastic.
Can accommodate 1x8 & 1x16 PLC splitter.
Anti-UV, Ultra violet resistant and rainfall resistant.
Up to 16 FTTH drops.
Wall and pole mountable.
2 inlet ports, 16 outlet ports.
Application:
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
Mechanical data
Material - PC
Dimensions:
|
Model |
Capacity |
Size |
|
16 port |
16 port |
260mm(W)x320mm(D)x115mm(D) |
Packing information
|
Model |
N.W (kg/pcs) |
Dimension of outer carton (mm) |
G.W of outer Carton (kg/carton) |
No of Products (pcs/carton) |
|
16 port |
1.85 |
550*355*620 |
19.8 |
10 |
