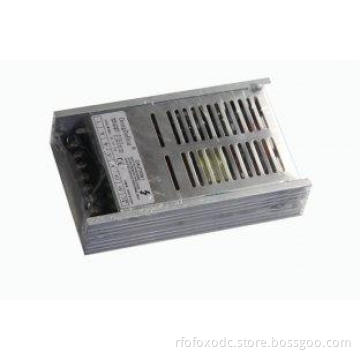

Rainproof 12 Volt LED Power Supply 120Watt 10A With EN1122

Competitive Advantage:

· Engineering box design, rainproof, rustproof, dustproof, safe, convenient installation

· 100% load test

· Full range of input voltage, built-in EMI filters

· output voltage accurate and stable

· Output over-voltage, over-current and short-circuit protection

· Output low ripple and noise

· Two year warranty

· Average working no trouble ＞50, 000 hours

Specification:

Product Electric Parameters
Input specification	Input voltage		AC100V---264V
	Input frequency		47-63Hz
	Input surge		20A@ 120VAC 20A@230VAC
Output specification	Output voltage can be adjusted		±10%
	Start-up time		≦1S(input230V, Io=100%)
	keep time		≧20mS (input230V, Io=100%)
	Voltage regulation		(Full load) ≦0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	Over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input---ground		1500VAC/1min
	Input---ground		500VAC/1min
Safety standards	According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards.
E M C standards	According with EN55022 class A EN61347-2-13:2008 standard
Environmental	Working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c/10% ~ 95% RH (no frost)
	height above sea level	≦2000M
structure	Size (mm)	195(L)112(W)*50(H)
Cooling method	Cooling method	Natural cooling air convection
Weight	0.7KG/PCS
