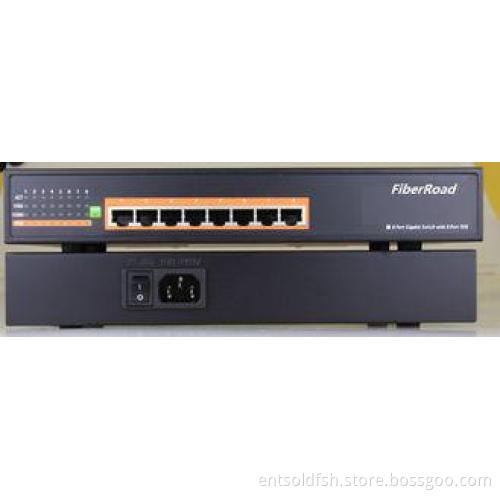

Gigabit Ethernet POE Switch 8 Port Rackmounted UTP STP 1000BASE-TX
Product Overview
Modern business networks are used for increasingly diverse applications– traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today's converged network often need to be supported not just in terms of data–equipment such as VoIP Ip telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.
Features:
|
P/N |
FR-POE-RH804T |
FR-POE-RH808T |
FR-POE-RG808T |
|
Port |
8*10/100M |
8*10/100/1000M |
|
|
4*PoE |
8*PoE |
||
|
Network Media |
10BASE-T: Cat 3,4,5 UTP/STP (≤100M) |
||
|
100BASE-TX: Cat 5 UTP/STP (≤100M) |
|||
|
|
1000BASE-TX:CAT 5,6 UTP/STP(≤100M) |
||
|
LED Indicator |
Power, Link/Act, 100Mbps,PoE Status |
||
|
Dimension(L*W*H) |
280mm*180mm*44mm |
||
|
Temperature |
Working Temperature: 0℃~40℃ |
||
|
Storage Temperature: -40℃~70℃ |
|||
|
Working Humidity : 10%~90% Non-condensing |
|||
|
Storage Humidity: 5%~90% Non-condensing |
|||
|
Input Power |
Internal power,65W |
Internal power,150W |
|
|
|
Max 100W |
Max 180W |
|
|
Standard |
IEEE 802.3, 802.3u, 802.3x, 802.3af,802.3at |
||
|
CSMA/CD, TCP/IP |
|||
|
Function |
Compatible IEEE 802.3at/af(PD)device |
||
|
Port power priority function |
|||
|
Line speed forwarding
|
|||
|
MAC automatic learning and aging
|
|||
|
IEEE802.3X full duplex flow control and Backpressure half duplex flow control |
|||
|
Backplane bandwidth |
1.6Gbps |
16Gbps |
|
|
MAC Address |
1k |
||
|
Forwarding Speed
|
10BASE-T: 14880pps/port |
||
|
100BASE-TX: 148800pps/port |
|||
|
|
1000BASE-TX: 148800pps/port |
||
