MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode

Specifications

1. Small form connector
2. High quality thermostatic ferrule
3. Side pulling proof
4. Compact size

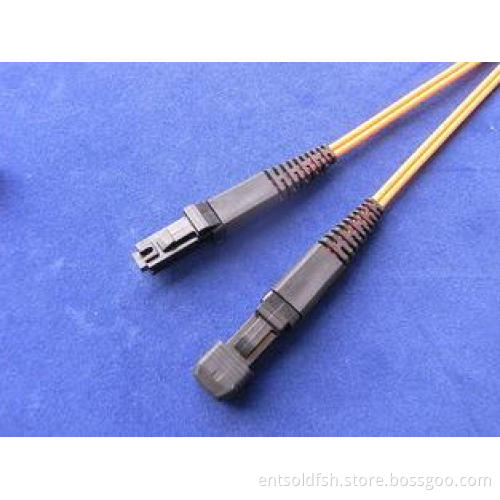

MTRJ Fiber optic connector

The MTRJ connector has an improved version of RJ-45 type plug. This latching mechanism ensure easy to use. MTRJ adapter with approximately same space as a simplex SC adapter

Availability:

• -The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
• -Clips are available for SC and LC duplex connectors
• Housing kits without ferrule are available.
• -PC and APC are available

Specifications:

• Insertion Loss: Single mode l≤0.20dB & Multimode ≤0.25dB
• Return Loss: PC ≥50 dB, UPC ≥55 dB & APC ≥65 dB
• Durability <0.20 dB typical change, 1000 mating
• Operating Temperature: -40 to + 80
• Ferrule Hole Sizes:
• Single mode: 125.0+1/-0μm, Concentricity: ≤1.0μm, 125.5+1/-0μm, Concentricity: ≤1.0μm, 126.0+1/-0μm, Concentricity: ≤1.0μm
• Multi mode: 125μm, Concentricity: 1≤3μm or 127μm, Concentricity: 1≤3μm or 128μm, Concentricity: 1≤3μm
