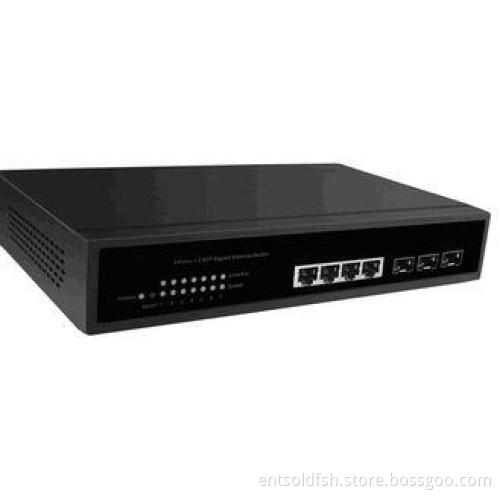

3 Gigabit SFP Web Management Fiber Optic Switches of IGMP Snooping 4 Ports RJ45
Product Description:
This Gigabit Web SmartSwitch fully complies with IEEE 802.3/802.3u/802.3ab Ethernet standards. It provides 4 10/100/1000Mbps Auto-Negotiation RJ45 portsand 3 SFP independence expansion slots supporting MiniGBIC . It also provides Web-based management functions including the system, port network, VLAN, Trunk, Priority and security etc.Its standard 11-inch rack-mountable steel case and intelligent management makes it is suitable for small, middle and large networks.
Product Characteristics
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab standards;
- 4 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX and 3 SFP independent expansion slots supporting Mini GBIC module;
- Supports Web Smart and console managements ;
- Support IEEE802.3x flow control for half/full-duplex;
- Store and forward, integrated 8K MAC address table;
- Supports Port-Based /Tag VLAN Configuration;
- Supports rapid spanning tree(RSTP) Configuration;
- SupportsPortTrunking;
- Supports port bandwidth control;
- Supports QoS function;
- Supports port mirror;
- Supports IGMP Snooping Configuration;
- Supports SNMP Configuration;
- Supports broadcast storm control;
- Supports HTTP software update, backup and reseting;
- Supports source IP filter through ports to block unwanted access;
- Supports dynamic flow statistics of ports;
- Supports circuit diagnoses;
- Standard 11-inch rack-mountable steel case;
- External power adapter supply;
Product Specifications
Standards | IEEE802.3, 802.3u, 802.3ab, 802.3x |
Basic Function | Wire-speed Performance |
MAC Address Auto-Learning and Auto-aging | |
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode | |
Backbound Bandwidth | 14Gbps |
MAC Address Table | 8k |
Forwarding Rate | 10BASE-T: 14880pps/port |
Transmission Method | Store-and-Forward |
Ports | 4 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)and 3 SFP independence expansion slots supporting MiniGBIC modules |
Network Media | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) |
LED Indicators | Power, Link/Act, Speed |
Dimensions (W*D*H) | 250mm× 150mm × 44mm |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
Input | Power: 100-240VAC 50-60Hz |
Detailed Management Function List | |
General Specs |
|
Switching fabric | store and forward |
Flash | 1M |
Dimensions(L*W*H) | 250*150*44 |
Max No. of 100Base-TX | 7 |
Max No. of 1000Base-T/FX | 4+3 |
MAC address table size | 8K |
Jumbo Frame | 9600Bytes |
Routing Protocol |
|
IGMP Snooping | support |
IGMP v1/v2/v3 | V1, V2 |
Availability |
|
802.1w RSTP | support |
802.3ad Link (LACP) | support |
Static Aggregation | support |
VLAN |
|
Port-based VLAN | support |
802.1Q VLAN | support, VID(1-4094) |
Max no. of VLAN | support 7 groups, VID(1-4094) |
QoS |
|
802.1p | support |
Port based Rate Limiting | support |
Broadcast Storm Control | support |
Multicast Storm Control | support |
Unknowable Unicast Control | support |
WRR | support |
COS | support |
DiffServ (DSCP) | support |
Security |
|
802.1x | support |
IP Filtering | support |
Management |
|
SNMP | V1, V2 |
Web Management | support |
ConsolePort | support |
DHCP Relay | support |
TFTP | support |
Port Mirroring | support |
