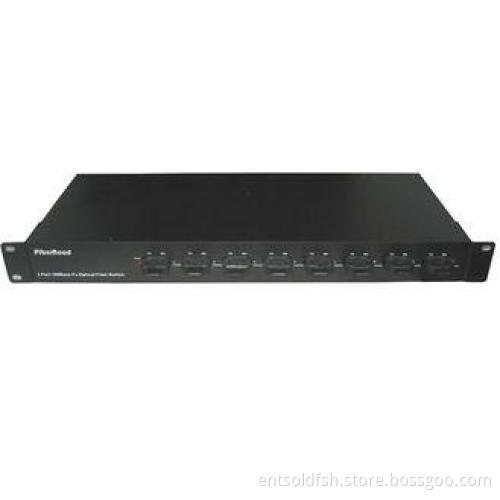

Dynamic LED 100Base-Fx Fiber Optical Switch 100M 8 Port 100Mbps Transmission
- 8-Port 100Mbps fiber module for option.
- Supports STORE AND FORWARD switching.
- Conforms to IEEE 802.3x back pressure in half-duplex and flow control in full-duplex operation mode.
- Supports MAC self-learning.
- Dynamic LED indicators.
- Supports port-based VLAN.
- Steel case.
Specification Description:
|
Standard |
IEEE802.3 , IEEE802.3u , IEEE802.3x , |
||
|
Topology |
Star |
||
|
Number of Ports |
8-Port 100Base-Fx |
||
|
Uplink Ports |
None |
||
|
Transmission Rate |
100Mbps : 148800pps |
||
|
Switching mode |
Store-and-Forward |
||
|
Flow control mode |
IEEE 802.3x full-duplex flow control and back pressure flow control |
||
|
LED Indicator |
LED status of Link, activity, and power on diagnostic function |
||
|
Power supply |
AC 100-240V/ 50-60Hz |
||
|
Temperature Humidity |
|
Temperature |
Humidity |
|
Operation |
-20 ℃to 70 ℃ |
10% to 90% |
|
|
Storage |
-40 ℃to 75 ℃ |
5% to 95% RH |
|
Technical Parameter:
|
Standard: |
IEEE802.3, IEEE802.3u , IEEE802.3x |
|
Protocol: |
CSMA/CD |
|
Input Voltage: |
AC100V-240V/50-60Hz |
|
Operational Temperature: |
0 ℃~ 50 ℃ |
|
Storage Temperature: |
-10 ℃~ 60 ℃ |
|
Humidity: |
5%~90% non-condensing |
|
Dimensions: |
232mm* 142mm * 45mm |
