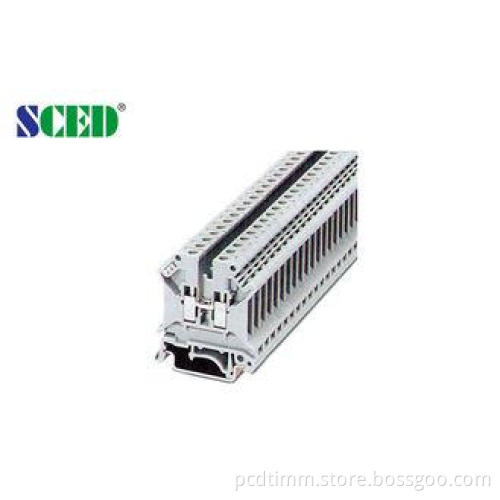

Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 3
  • Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 3
Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 3
Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 3
Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 3

Terminal width 6.2mm Compact Din Rail Terminal Blocks AWG 3

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen, China
Product Description
Product Description

Detailed product Description:
TTerminal width 6.2mm Compact Din Rail Terminal Blocks AWG 30-10 600V 30A, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:



Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

Description Color

Type

Terminal Grey

TR-5N

End Cover Grey

D-TR-3/16

Fixed Bridge

FBI 10-6 Imax: 41A

Insertion Bridge

EB 10-6 Imax: 32A

Separating Plate

TS-K

Partition Plate

ATP-TR

Zack Strip White

ZB6

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions mm

6.2/42.5/2

Height (U35: 7.5/U35: 15G 32) mm

47/54.5/52

Screw / Torque Nm

M3 / 0.6-0.8

Stripping Length mm

8

IEC Technical Data

Max. Load Current / Cross Section A / mm2

41 / 6

Rated Surge Voltage / Contamination Class KV / -

8 / 3

Surge Voltage Category

Ⅲ / Ⅰ


Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
