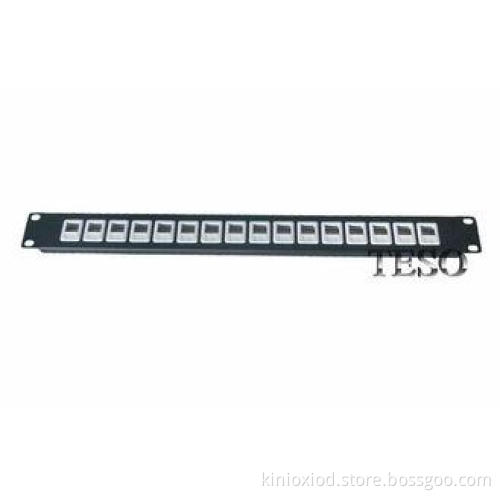

16 Ports Category 6 Ethernet Patch Panel , Home Network Patch Panel

Quick Detail:

1. 19” RJ45 cat6 patch panel ,16 port, unshielded and shielded

2. 8port ,12 port ,16 port ,24port,48port is optional.

3. krone IDC patch panel or dual IDC patch panel ,modular patch panel.

4. Wiring :T568A/B

5. Test :Pass fluke test and with 25 years quality warranty.

Specification

*High performance ,exceeds ANSI/TIA-568-C-2 category 6 hardware transmission performance.

*110 type and krone type IDC termination

*19” 12 port ,16port ,24 port patch panel ,1U size & 48 port patch panel ,2U size .

*Optional rear cable manager

*Connector module holder: High-impact ,flame-retardant plastic ,UL94 V-0

*Operating temperatures:-20 to 60℃

*Unshielded and shielded

*Wiring :T568A/B

Description

*19" standard size for mounting in racks and cabinets

*This patch panel is designed for 22-26 AWG stranded or solid conductors

*Height: 1U, 2U

*Horizontal termination

Materials

*Housing: ABS,UL94-0

*IDC: PC

*PCB: FR-4 1.6 mm (0.06") thick, 2 layers

*Contacts: 0.35 mm (0.014") phosphor bronze with 1.27 micron (50 microinches) gold plating on contact area

*Metal housing: 1.6 mm (0.06") thick metal

Construction Characteristic features

*Color marking of conductors according to T568B and T568A

*Numeral marking of ports on the front side of the panel

*Space for additional marking

*Color and numeral marking of IDC modules on the rear side of the panel

*The patch cord usage provides the best connection

*IDC Dual contacts provide minimal crosstalk

*110 type punch down tool is used for cable termination

Electrical characteristics

*According to UL 1863

*Current rating: 1.5 A max

*Voltage rating: 150 V

*Contact Resistance: 20 mOhm

*Insulation Resistance: 500 MOhm

*Dielectric withstand voltage: 1000 V AC RMS, 60Hz/1min
