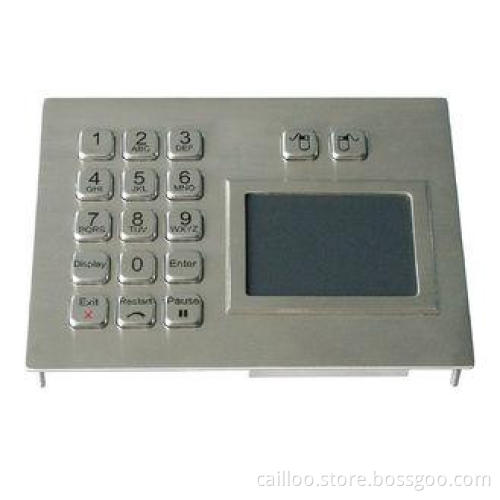

IP65 Metal Industrial Touchpad with 15 Keys Numeric Keypad
  • IP65 Metal Industrial Touchpad with 15 Keys Numeric Keypad
IP65 Metal Industrial Touchpad with 15 Keys Numeric Keypad

IP65 Metal Industrial Touchpad with 15 Keys Numeric Keypad

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Product Description
Product Description

IP65 Metal Industrial Touchpad with 15 Keys Numeric Keypad

Special Features:

1. Integrated with 15 keys numeric keypad.

2. Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm)

3. IP65 ruggedized touchpad with scroll function (optional) for fast and accurate cursor position.

4. CE, FCC, RoHS, IP65, ESD

5. With extremely good tactile feeling for fast and accurate data input without any noise

6. Stainless steel top plate with threaded bolts for top panel mounting solution. .

Specifications:

ITEM

SPECIFICATION

Mechanical

Front Plate

Quality brushed stainless steel

Touchpad thickness

1.3 mm PCB thickness inclusive of mylar layer

Validated touch width

46.50mm (max)

Validated touch length

62.50mm (max)

Mounting Rack

Aluminum alloy

Back Metal Cover

Rear side integrated electronics protected by a metal cover

Touchpad lifespan

> 10 Mio times

Dimensions

Touchpad: 65.0mm x 49.0mm;

Front Mounting Panel: 160.0mm x 125.0mm (front panel),

Interface

PS2 and USB both available

Electrical

Power supply

5V DC+ 10%,

Work current

4.0 mA (normal)

X/Y position sensing resolution:

1000 points/inch (40 points/mm)

X/Y position reporting:

Relative

Tracking speed:

Maximum 1,016 m/sec

Protection level:

IP65 (front panel)

Static Release:

15 KV (front panel)

EMC Standard:

EN55022(B)

Environmental

Operating temperature:

-20°C to +60°C

Storage temperature:

- 40°C to + 70°C

Operating RH:

10%-95%

Atmospheric pressure:

60-106Kpa

Reliability

MTBF

>50000H

MTTR

< 30min

Touchpad Lifespan

>10 million actuations

OS

OS is under All windows Linux, Unix, Mac OS9 / OSX

Packing Details

Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
