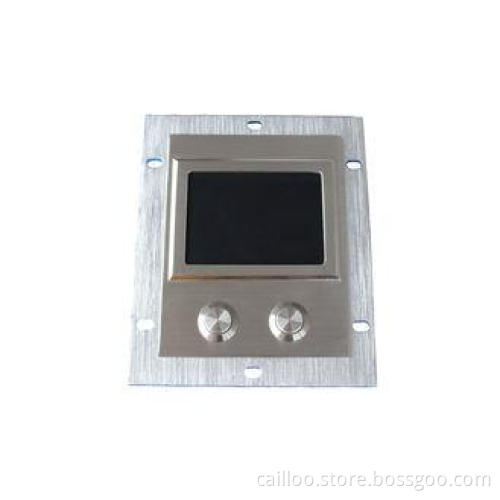

Pretty Mini Industrial Touchpad with high and acurate resolution

Special Features:

1. Dimension:83.0mm x 110.0mm (front panel)

2. IP65 dynamica rated Sealed and Ruggedized Touchpad

3. Scroll function optional

4. CE, FCC, RoHS, IP65, ESD

5. With scroll function optional for fast and accurate cursor position,

6. Stainless steel housing protects the electronics controller module,

7. IP65 dynamic rated sealed stainless steel mouse buttons under touchpad

8. Rear panel mounting.

Specifications:

ITEM		SPECIFICATION
Mechanical	Front Plate	Quality brushed stainless steel
	Touchpad thickness	1.3 mm PCB thickness inclusive of mylar layer
	Validated touch width	46.50mm (max)
	Validated touch length	62.50mm (max)
	Mounting Rack	Aluminum alloy
	Back Metal Cover	Rear side integrated electronics protected by a metal cover
	Touchpad lifespan	> 10 Mio times
	Dimensions	Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: 83.0mm x 110.0mm (front panel), Rear Mounting Panel: 107.0mm x 134.0mm
Interface	PS2 and USB both available
Electrical	Power supply		5V DC+ 10%,
	Work current		4.0 mA (normal)
	X/Y position sensing resolution:		1000 points/inch (40 points/mm)
	X/Y position reporting:		Relative
	Tracking speed:		Maximum 1,016 m/sec
	Protection level:		IP65 dynamic (front panel)
	Static Release:		15 KV (front panel)
	EMC Standard:		EN55022(B)
Environmental	Operating temperature:		-20°C to +60°C
	Storage temperature:		- 40°C to + 70°C
	Operating RH:		10%-95%
	Atmospheric pressure:		60-106Kpa
Reliability	MTBF		>50000h
	MTTR		< 30min
	Key switch lifespan		>5 million actuations
OS	OS is under All windows, Linux, Unix, Mac OS9 / OSX
Packing Details	Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
