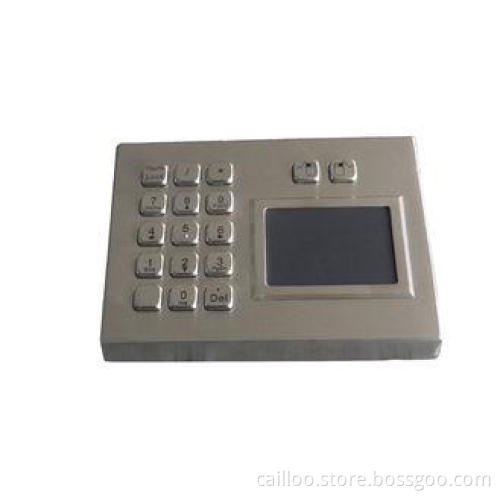

Ruggedized Desktop Industrial Touchpad With Keypad , IP65 S
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Details:
1. IP65 dynamic sealed and ruggedized tough touchpad with keypad
2. movable stand alone desk top version
3. Water proof and vandal proof
4. CE, FCC, RoHS, IP65, ESD
Descriptions:
1. IP65 dynamic sealed and ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor input
2. with numeric keypad integrated
3. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for
fast and accurate data input without any noise
4. movable stand alone desk top version with stainless steel housing.
Specifications:
|
ITEM |
SPECIFICATION |
||
|
Mechanical |
Front Plate |
Quality brushed stainless steel |
|
|
Touchpad thickness |
1.3 mm PCB thickness inclusive of mylar layer |
||
|
Validated touch width |
46.50mm (max) |
||
|
Validated touch length |
62.50mm (max) |
||
|
Mounting Rack |
Aluminum alloy |
||
|
Back Metal Cover |
Rear side integrated electronics protected by a metal cover |
||
|
Touchpad lifespan |
> 10 Mio times |
||
|
Dimensions |
Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: 160.0mm x 125.0mm x 20mm (L x W x H), |
||
|
Interface |
PS2 and USB both available |
||
|
Electrical |
Power supply |
5V DC+ 10%, |
|
|
Work current |
4.0 mA (normal) |
||
|
X/Y position sensing resolution: |
1000 points/inch (40 points/mm) |
||
|
X/Y position reporting: |
Relative |
||
|
Tracking speed: |
Maximum 1,016 m/sec |
||
|
Protection level: |
IP65 (front panel) |
||
|
Static Release: |
15 KV (front panel) |
||
|
EMC Standard: |
EN55022(B) |
||
|
Environmental |
Operating temperature: |
-20°C to +60°C |
|
|
Storage temperature: |
- 40°C to + 70°C |
||
|
Operating RH: |
10%-95% |
||
|
Atmospheric pressure: |
60-106Kpa |
||
|
Reliability |
MTBF |
>50000H |
|
|
MTTR |
< 30min |
||
|
Touchpad Lifespan |
>10 million actuations |
||
|
OS |
OS is under All windows, Linux, Unix, Mac OS9 / OSX |
||
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
||
