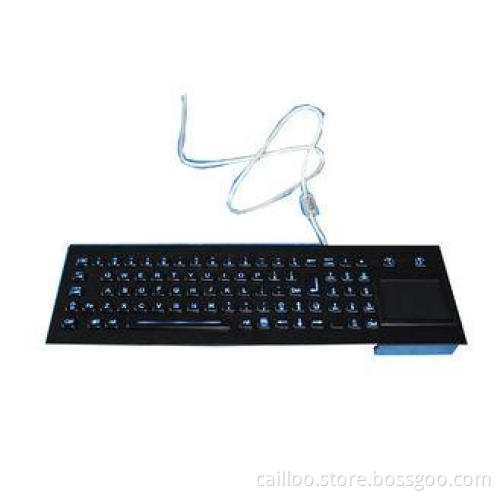

Explosionproof metal backlight keyboard with touchpad for coal mine.
Special Features:
1. IP65 waterproof keyboard with sealed & ruggedized tough touchpad for fast and accurate cursor position,
2. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise
3. High quality scratch-proof durable black titanium electroplated on the top stainless steel plate and all keys
4..Stainless steel keyboard with black titanium electroplated make it more attractive & keyboard surface with long-lasting.
5. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,functionality, longevity and high protection level.
6. We design and manufacture complete electronic modules including controller in close consultation with our customers.
7.Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion,weather-proof especially underextreme climatic conditions,water proof/dirt proof operation under hostile environments.
8. Waterproof execution according to degree of protection IP65 from the front panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
Applications:
This durable and black Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
MECHANICAL DATA |
|
Key |
82 keys, super quality brushed stainless steel |
Key top style |
Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
Key Size |
14.0mm x 14.0mm for normal keys, |
Key travel |
2.0mm |
Switch life |
more than 10 million of operations |
Actuation Force |
0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point) |
Front Plate |
1.5mm thickness super quality brushed stainless steel |
Back Plate |
3.0mm thickness brushed and oxidized aluminium |
Lettering |
Sunk laser legends & characters in high quality ink |
Actuator/keys materials |
stainless steel |
G.W. |
2.30KGs |
Dimension |
400.0mm x 124.0mm (top panel) |
ELECTRICAL DATA |
|
Supply Voltage |
+5V DC +/-5% |
Current Rating |
appr. 20mA |
EMC Standard: |
It is compliance with the council IEC 61000-4-2:2008; |
EMI: |
EN 55022: 2010 |
EMS: |
EN 55024:2010 |
Lifespan |
> 5 years |
Switch Contact Material: |
Carbon-on-Gold key switch technology PCB. |
Interface: |
PS2, USB available. |
OS: |
All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY |
|
Operating temperature |
-20oC to +60oC |
Storage temperature |
-30oC to +70oC |
Operating RH |
30-90% |
Atmospheric pressure |
60-106Kpa |
Saline mist |
96 hours, IEC 60512-6 |
Damp heat test at + 40oC |
21 days, IEC 60512-6 |
Dry heat test at + 85oC |
10 days, IEC 60512-6 |
RELIABILITY |
|
Certification |
RoHS Compliant, CE and FCC,IP65,ESD |
Protection Level |
IP65(front panel) |
Vandal resistant |
IK09 |
Key Lifespan |
>10 million actuations |
MTBF |
>50000H |
MTTR |
<30 |
