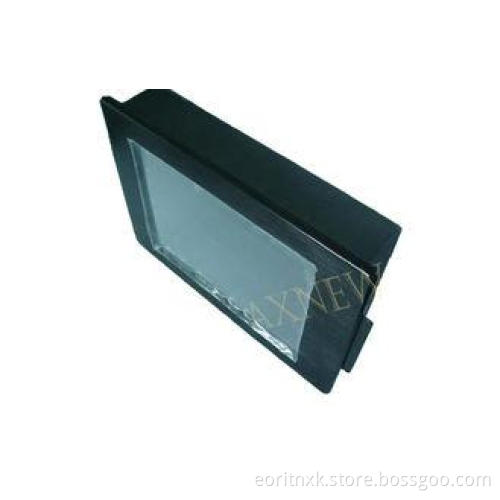

Kiosk High Brightness 12.1 inch VGA Industrial Touch Panel

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China

Product Description

High Brightness 12.1 inch Industrial Touch Panel PC Intel® Atom™ N270

IP65 Stainless Steel Fanless 12" Industrial High Brightness Panel PC with Intel® Atom™ N270

which is widely used to mount into the Automatic equipments, Gas Station ,Advertising , vending embedded system, Kiosk application etc.

Quick Details:

Model: AXD-12PPC-A1
Screen Size:12.1’’
Screen format: 4:3
Display Resolution(pixel):800X600
Contrast Ratio:800:1
Brightness:400cd/m^2
Storage temperature : -30℃~65℃
Touch Type: Resistive Touch screen
Power Input: DC 12V
Product status: Stock

Features and Advantages

1. Fanless Design; Ultra Slim and Compact Mechanical Design
2. High Luminance LCD Panel
3. Intel® Atom™ N270 1.6GHz Processor
4. 12 " XGA 800 x 600 Resolution Color TFT LCD Display
5. Fully IP65 Waterproof Compliant Stainless Steel Chassis
6. Supp orts Wide Range DC Power Input (12V)
7. Intel® SATA SSD Compatible
8. Wake-on-LAN functionality for targeted centralized startup via a network

Specifications datasheet

Panel PC information
Model Number	AXD-12PPC-A1
Model Number	12.1’’ Touch panel pc
Case/Bezel Color	Black
TFT Type	Industrial LCD with LED backlight
Aspect ratio	4:3
Touch Panel	Industrial 5 wire Resistive Flat Screen
Touch response time	10ms (typical)
Optimal (native) Resolution	800 x 600/1024x768
LCD panel Pixel pitch	0.264 x 0.264 mm
LCD panel Colors	16.2 million
LCD panel Brightness	400 cd/m2
LCD panel Response Time	8ms
Contrast Ratio	500:1
Viewing Angle ( Wide )
Horizontal (left/right)	±70° or 140° total
Vertical (up/down)	70°(up), 70°(down) or 140° total
CPU	Soldered onboard Intel® Atom™ N270 1.6GHz Processor; DDR2 800MHz SDRAM ; Chipset: Intel® 945GSE + ICH7M
storage	1 x 2.5" drive bay for SATA SSD HDD
Serial Ports	4 x COM ports (1x RS-232/422/485 by-pin connector)
USB Ports	2 x USB external ports ; 6 six USB internal ports
LAN	1 x LAN RJ-45 connector
Net	1 x Realtek RTL8111C Gigabit Ethernet controller
DC Power In	1 x 4-pin connector
Video Port	1 x DVI-D female connector for Digital Video Output
Watch Dog Timer	1~255 levels reset
Internal Sockets & Connectors	1 x Compact Flash socket (reserved for OEM project)
Power Specification	DC 12V
Working Environment
Temperature	Operating: 0°C to 50°C ;Storage -30°C to 65°C
Operating Humidity	5 ~ 90% RH @40°C (non-condensing
Vibration	5 ~ 500Hz, 3Grms Random (with CF/SSD)
Shock	Operating 16G, 11ms & Non-operating 4G, 20ms (with
Dimensions
Mounting Type	Embedded Installation
Mechanical dimensions	344 x 58 x 263 mm
Weight (Net)	5.5 kgs/ piece
Drawings	Please contact us for details
