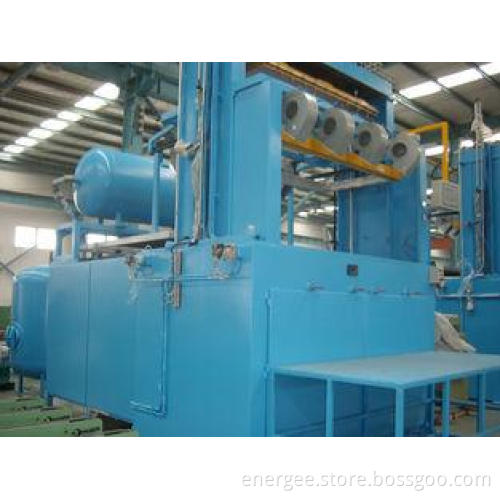

Plastic Vacuum / Thermo Forming Machine Refrigerator Assembly Line For Door Liner
Quick Detail:
|
Condition |
New |
|
Type |
Vacuum Forming Machine |
|
Plastic Type |
ABS |
|
Product Type |
Sheet |
|
Automatic |
Yes |
|
Place of Origin |
Guangdong, China (Mainland) |
|
Brand Name |
KINTE |
|
Voltage |
380V |
|
Power(W) |
about 230kw (Max) |
|
After-sales Service Provided |
Engineers available to service machinery overseas |
1. All the business of Kinte is international and abroad only.
2. We have a large team and we provide one-station service
Description:
|
I. General conception
This machine is a single working-station liner thermoforming machine, material loading and unloading is operated manually.
Material locking, heating, forming, cooling and other processes(pre-cutting) are all done in the single station;
detail processes as follows:
sheet is loaded to the working position on the thermoforming machine→ hydraulic cylinder drives the pressuring framework down, to lock the material sheet→ heating unit moves ahead, to heat the sheet→ after heating, the heating unit moves back→ then bulb blow→ the mould moves to the accurate position→ vacuum, the sheet is absorbed on to the convex mould surface→ the upper mould frame moves down to assist forming→ cooling device cools the formed inner→ the upper mould frame moves up→ demould→ the convex mould moves down→ the pressuring framework moves up→ unload the formed parts manually.
The advantages of this type of machine are simple structure, easy operating and friend man-machine interface, and this type of machine is suitable for large product forming. Siemens is used for the electric control system, touch panel is used for monitoring the system, intelligent temperature controlling way is configured, and all the heating areas can be controlled separately. Proportional valves are used for controlling the speed of bulb blowing and demoulding.
|
Applications:
This machine is a single working-station liner thermoforming machine, material loading and unloading is operated manually.
Specifications:
II. Main technique function data
Max inner hole size of worktable : 2250mm×1300mm
Max forming depth: 700mm
Total power consumption: about 230kw(Max)
Forming mode : male-type forming
Compressed air : 1.5" (0.5—0.6 Mpa)
Pure Water : 0.4Mpa(Provided by the buyer)
Temp of pure water: 0-100°C
Driving type: drived by hydraulic pressure
Working station height : 1900mm (for reference)
Material sheet thickness: 1.0—5.2mm
Sheet material: ABS or HIPS
Competitive Advantage:
We offer single station, 3 station & 4 station vacuum forming machine which are suitable for refrigerator liner thermo forming.
1. We provide one-station service
2. What you need is a thought then we make it come true.
3. We have a big team,we are always ready to go for installation and maintenance and training.
4. We have many abroad experience.
