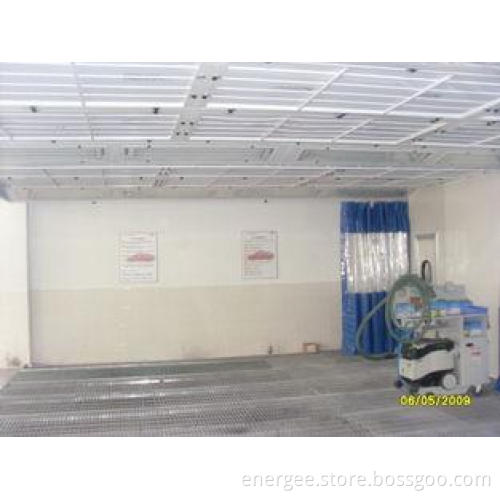

Galvanized Steel Basement Insulation Car Spray Preparation

Booth Dimension

- Internal Size(L×W×H)

6300×3450×2700mm & 20'7''X11'3''X8'9''

- External Size(L×W×H)

7550×3550×3100 mm & 24'8''X11'6''X10'2''

- Plenum Size(L×W×H)

6300×3450×400mm & 20'7''X11'6''X13'1''

Galvanized steel plate made of plenum

Foundation and Floor

- Metal Basement

Complete full grilles of basement which made by flat bar and twisted steel,

galvanized; 300mm high galvanized steel basement, quadrate steel support,

2 pcs of ramps,each size is 520x2000mm(WxL).

Wall and Door

- Room body

One side is polystyrene (EPS) insulation wall panel, tongue and groove

structure. 50mm thickness, width, 1150mm. colour: white. Three sides are

coated cover plate and PVC curtain, color: white in upper side, blue in

bottom side, transparent in the middle.

Lighting System

- Ceiling Lights

8Units, each 4×36 W, with electronic ballasts.Total 1152W

- Brightness

>800LUX

Filter System

- Filter

Pre-filter, high efficiency filter, exhaust fiberglass filter, M shape dust

collector.

- Filtering area

14.8M2

Ventilation System

- Generator setting

Exhaust air from rear side, galvanized steel molding frame, white EPS

cover plates

- Intake air system (Fresh Air)

1×5.5KW double intake centrifugal fan, model YDW-4.5S,

air capacity:15500 M3/h

- Damper actuates

Manual damper actuates from spraying to painting cycle, manual damper f

or exhaust air.

Heating System

- Heating Exchange

Stainless Steel

- Heating Exchange Capacity

100000Kcal/h.

- Max. Drying Temperature

80 °C

- Heating time

8-12 min (from 20 to 60ºС) by Drying Phase

- Heating Type (optional)

Diesel burner RIELLO G10 , 1 set

Control Box

- Control system

Fan operation switch,lighting switch, thermostat, emergency stop

- Installed type

Steel column supporting or hook from roof

- Total power

12.7KW
