RIELLO G10 Diesel Burner Metal Basement Auto Care Paint Pre

Booth Dimension

- Internal Size(L×W×H)

6300×3450×2700mm & 20'7''X11'3''X8'9''

- External Size(L×W×H)

7550×3550×3100 mm & 24'8''X11'6''X10'2''

- Plenum Size(L×W×H)

6300×3450×400mm & 20'7''X11'6''X13'1''

Galvanized steel plate made of plenum

Foundation and Floor

- Metal Basement

2 rows of pits in the ground for exhaust air, dimension of each pit is 4610X760mm (LXW), with galvanized grids made by twisted steel
and flat bar above.

Without basement.

Wall and Door

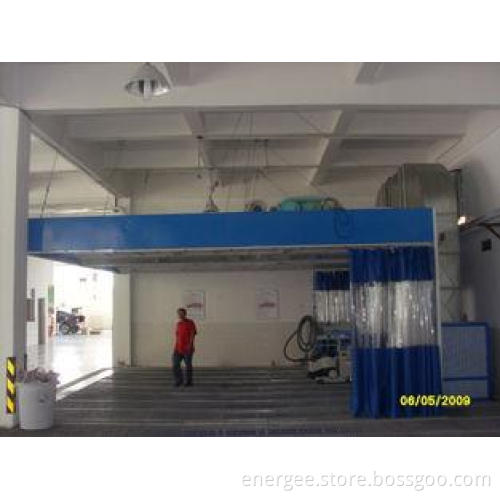

- Room body

One side is polystyrene (EPS) insulation wall panel, tongue and groove structure. 50mm thickness, width, 1150mm. colour: white.
Three sides are coated cover plate and PVC curtain, color: white in upper side, blue in bottom side,
transparent in the middle.

Lighting System

- Ceiling Lights

8Units, each 4×36 W, with electronic ballasts.Total 1152W

- Brightness

>800LUX

Filter System

- Filter

Pre-filter, high efficiency filter, exhaust fiberglass filter, M shape dust collector.

- Filtering area

14.8M2

Ventilation System

- Generator setting

Exhaust air from rear side, galvanized steel molding frame, white EPS cover plates

- Intake air system (Fresh Air)

1×5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity:15500 M3/h

- Damper actuates

Manual damper actuates from spraying to painting cycle, manual damper for exhaust air.

Heating System

- Heating Exchange

Stainless Steel

- Heating Exchange Capacity

100000Kcal/h.

- Max. Drying Temperature

80 °C

- Heating time

8-12 min (from 20 to 60ºС) by Drying Phase

- Heating Type (optional)

Diesel burner RIELLO G10 , 1 set

Control Box

- Control system

Fan operation switch, lighting switch, thermostat,
emergency stop

- Installed type

Steel column supporting or hook from roof

- Total power

12.7KW
