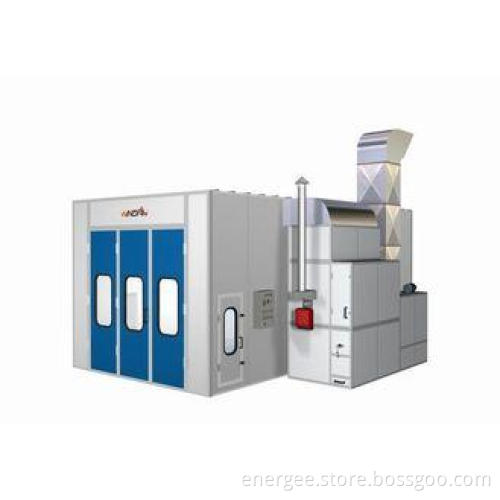

Emergency Stop Energy Saving Insulation EPS Industrial Heat Spray And Baking Booth, Room
| Booth Dimension | |
| - Internal Size(L×B×H) | 9200x4500x3500mm& 30'2''X14'8''X11'5'' |
| - External Size(L×B×H) | 9344x6396x4100mm& 30'6''X21'X13'4'' |
| Foundation and Floor | |
| - Grid | 52M ( 2 rows air exhust plenum chamber) |
| - Metal Basement | Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is 6900x760mm(LxW), with galvanized grids made by twisted steel and flat bar above |
| Wall and Door | |
| - Steel Wall | Double construction with insulationsEPS , thickness 70mm, width:1150mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside |
| - 3-Folded Entrance Door With Safety Glass Window | 1 Unit, 3500×3400 mm(WxH) , galvanized steel cover frame, with polystyrene(EPS) insulation inside |
| - Operator’s Door With Safety Glass Window | 1Unit, 800×2000 mm(W×H) |
| Lighting System | |
| - Ceiling Lights | 12Units, each 4×36 W, with electronic ballasts.Total 1728W |
| - Side Lights | 12Units, each 4×36W, with electronic ballasts.Total 1728W |
| - Brightness | >1000LUX |
| Filter System | |
| - Filter | 31M2 |
| Ventilation System | |
| - Intake air system (Fresh Air) | 2x7.5KW double-intake centrifugal fans for intake air, model is YDW4.5M, total air capacity is 42000m3/h |
| - Exhaust air system(Exhaust Air) | 1x11KW double-intake centrifugal fans for exhaust air, external motor, belt-drive, model TAE-710H, air capacity is 36000m3/h |
| - Damper actuates | Manual damper actuates from spraying to baking cycle, manual damper for exhaust air |
| Heating System | |
| - Heating Exchange | Stainless Steel |
| - Heating Exchange Capacity | 260000Kcal/h |
| - Max. Drying Temperature | 80 °C |
| - Heating time | 10-15 min (from 20 to 60) by Drying Phase |
| - Heating Type (optional) | RIELLO RG5S (260000 kcal/h)Diesel )1set |
| Control Box | |
| - Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start |
| - Total power | 30.5KW |
