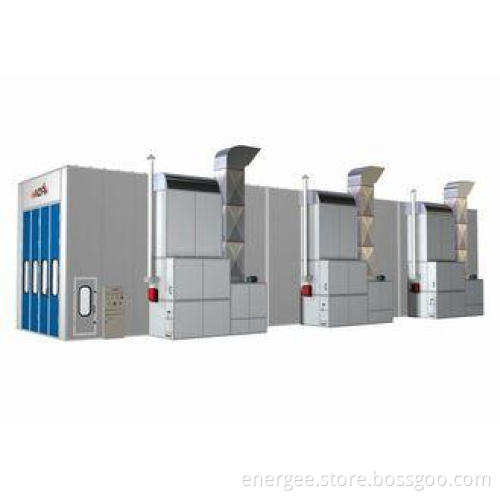

15M Full Grid Industrial Spray Booths With Double Intake Centrifugal Fans
| Booth Dimension | |
| - Internal Size(L×B×H) | 23000×5000×5000mm & 75'4''X16'4''X16'4'' |
| - External Size(L×B×H) | 23144×6896×5600mm & 75'9''X22'6''X18'4'' |
| Foundation and Floor | |
| - Grid | 15M full grid ( 2 rows air exhust plenum chamber) |
| - Metal Basement |
Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is 20700×760mm(L×W), with galvanized grids made by twisted steel and flat bar above |
| Wall and Door | |
| - Steel Wall |
Profiled bar beams in the roof to strengthen the room body Double construction with insulations EPS , thickness 70mm, width:1150mm, tongue and groove interlock structure |
|
- 4-Folded Entrance Door With Safety Glass Window |
1 Unit, 4000×4500mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside |
|
- Operator’s Door With Safety Glass Window |
2Units, 800×2000 mm(W×H) ( 2 service door all at the left side ) |
| Lighting System | |
| - Ceiling Lights | 26Units, each 4×36 W, with electronic ballasts |
| - Side Lights | 32Units, each 4×36W, with electronic ballasts |
| Filter System | |
| - Filter | Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter |
| - Filtering area | 96M2 |
| Ventilation System | |
|
- Intake air system (Fresh Air) |
6×7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, total air capacity: 126000m3/h |
|
- Exhaust air system(Exhaust Air) |
3×11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, total air capacity: 108000m3/h |
| - Damper actuates |
Pneumatic damper actuates from spraying to baking cycle, manual dampers for exhaust air |
| Heating System | |
| - Heating Exchange | Stainless Steel |
|
- Heating Exchange Capacity |
260000Kcal/h |
|
- Max. Drying Temperature |
80 °C |
| - Heating time | 8-15 min (from 20 to 60) by Drying Phase |
| - Heating Type (optional) | RIELLO RG5S (260000 kcal/h)Diesel )3set |
| Control Box | |
| - Control system |
Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. exhaust reduction voltage motor start |
| - Total power | 98KW |
