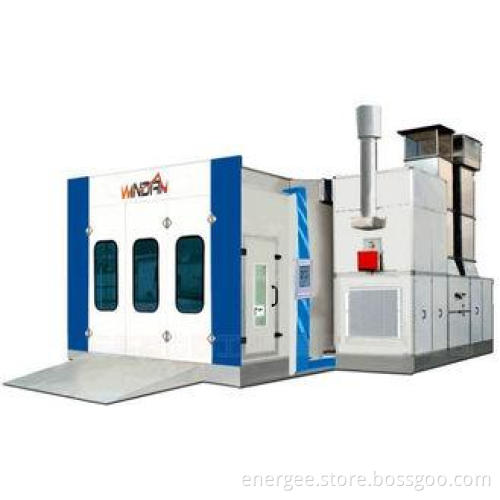

RG5S Diesel Burner Down Draft Spray Booth For Car Painting

RG5S Diesel Burner Down Draft Spray Booth For Car Painting Drying And Baking WD-905

Specification: WD-905

Outside dimension:7000×5550×3450mm(L×W×H);

Inside dimension: 6900×4000×2650mm(L×W×H);

Front door dimension: 3000×2600mm(W×H);

Working door dimension: 800×2000mm(W×H);

Cabin system:

1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS panel; 0.476 thick colored steel.

Roof panel: 50mm thick flame-resistant and heat-preserving rock wool panel; 0.476 thick colored steel.

2) Basement: adjustable base, complete grilles, three ramps, height is 280mm;

Air circulation system:

One set automatic damper, 20N actuator

Generator: separate air inlet and outlet duct and cabin; quadrate steel frame;

Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter, active carbon;

Heat system: RIELLO RG5S diesel burner one stage, heating capacity is 260000Kcal/h, electric

damper from spraying to baking cycle; the heating time is 5~7 minutes;

Lighting system:≥1000Lux

Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W

Side Vertical Lights: 8Groupsx2Pcs=16Pcs x36W

Glass: all glass is toughened glass.

Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature controller, temperature limit controller, air pressure meter, emergency stop, breakdown alarm;

Power: 17.7KW

Adventage

1. Windan brand is one of the best spray booth company in China. We have

professional technology.

2. Good sell in Europe and Australia.

3. Custom design are welcome

4. 2 years warrantee period.

5. 24hours on line service.
