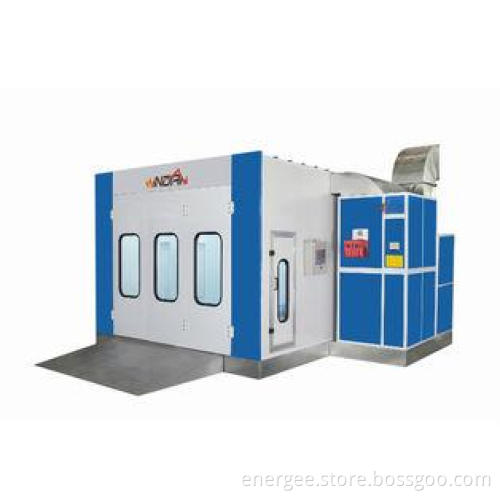

0.426mm Wall Panel Down Draft Spray Booth , 7.5kw Exhaust Fan WD-904

Specification: WD-904

Outside dimension:7000×5560×3430mm(L×W×H);

Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×2000mm(W×H);
Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS panel; 0.426 thick colored steel.

Roof panel: galvanized sheet;
2) Basement: two line grilles, three diamond plates; complete ramps; height is 280mm;
Air circulation system:

One set automatic damper, 10N actuator
Generator: slid upward side intake air; rare upward side exhaust; quadrate steel frame;
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter, active carbon;
Heat system: RIELLO G20 diesel burner (one stage), heating capacity is 200000Kcal/h, electric damper from

spraying to baking cycle; oil consumption 4~6L/set; the heating time is 5~7 minutes;
Lighting system:≥1000Lux
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W
Side Lights: 8Groupsx2Pcs=16Pcs x36W
Glass: all glass is clear tempered glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature

controller, temperature limit controller, emergency stop, breakdown alarm;
Total power: 16KW

Adventage
1. Windan brand is one of the best spray booth company in China. We have
professional technology.
2. Good sell in Europe and Australia.
3. Custom design are welcome
4. 2 years warrantee period.
5. 24hours on line service.
