Riello Burner Auto Spray Booth With Exhaust Fan And Intake
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

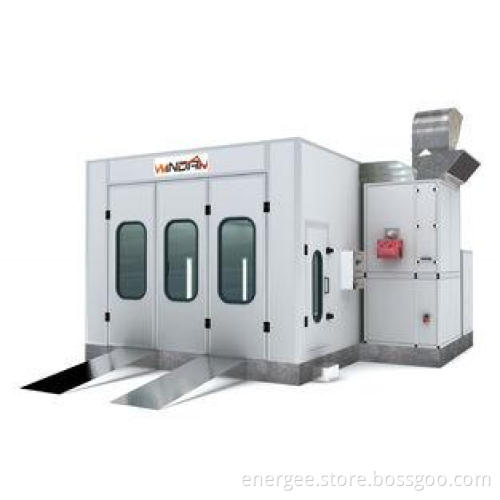

Riello Burner Auto Spray Booth With Exhaust Fan And Intake Fan WD-20
1.Professional manufacturer approve C.E certification
2.Italian Riello burner G20.
3.Best quality and competitive price
Specification: WD-20
| Inside Dimension | 6900X4000X2700MM(LXWXH) & 22'6''X 13'1''X8'9''(LXWXH) |
| Outside Dimension | 7000X5600X3500MM(LXWXH)& 23'X18'4''X11'5'' (LXWXH) |
| Main door | 3-fold, 3000X2650MM(WXH) with heat insulation glass window |
| Personal door | 1-fold, 800X2000MM (WXH) with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limi |
| Booth System | Wall panel :EPS(epispastics polystyrene) heat preservation panel doubleskinned , tongue and groove construction, thickness: 50MM EPS , roof panel: galvanize plate |
| Basement and floor: Complete steel assemble, height: 300mm. 2 rows of grids, 3 rows of embossed plates. 2Pcs ramps, each size:520X2000MM(WXL) |
|
| Lighting System | Ceiling light: 4Pcs X8units=32PcsX36W, Lower light: 2Pcs X8units=16PCsX30W, vertical installation. Phillip brand light tube with PAK light holder |
| Generator setting type | Side upper intake air, quadrate steel frame, coated steel |
| Ventilation System | Intake fan: 2X4KW double-intake centrifugal fan, , air capacity:22000m3 /h |
| Exhaust fan: 1Pc 4KW double-intake centrifugal fan, air capacity:12500m3 /h | |
| Heating system | Italian Riello G20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional |
| SUS304 Stainless steel heat exchanger, highest temperature 80C, 1pc electric damper from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 87.1% heat exchanging rate | |
| Filter system | Prefilter, high efficiency filte (ceiling filter), floor filter, exhaust active carbon filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, emergency stop, failure indicator, limited-temperature device |
| Total power | 14KW |
Adventage
1. Windan brand is one of the best spray booth company in China. We have
professional technology.
2. Good sell in Europe and Australia.
3. Custom design are welcome
4. 2 years warrantee period.
5. 24hours on line service
